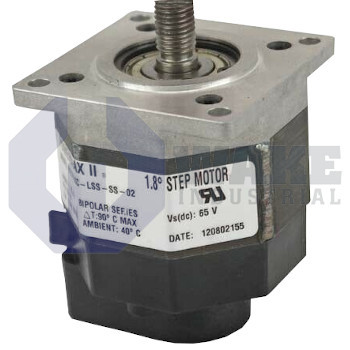

M21NSXC-LSS-SS-02 Pacific Scientific NEMA 23 1.8 Degree Stepper Motor
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
The Pacific Scientific M21NSXC-LSS-SS-02 is part of the POWERMAX II M Motors series and features an enhanced construction with a NEMA 23 frame size. This motor offers a step angle of 1.8 degrees with 200 steps per revolution and has a Class B insulation rated for 130°C. It is designed with IP23 protection and operates in temperatures from -20°C to +40°C.
Internal Product Review
The M21NSXC-LSS-SS-02 is a Pacific Scientific POWERMAX II M stepper motor with NEMA 23 frame sizing and enhanced construction. Class B insulation rated to 130°C and IP23 protection support dependable operation in controlled industrial environments. A strong choice for motion systems requiring consistent 1.8-degree step positioning.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The M21NSXC-LSS-SS-02 is a hybrid stepper motor produced by Pacific Scientific and supplied within the POWERMAX II M Motors series. Designed for open-loop positioning tasks, the unit converts pulse trains from an indexer or drive into incremental shaft movement for conveyors, pick-and-place axes, or small gantries in industrial automation. Its NEMA mounting face allows direct substitution into legacy frames, while the enhanced construction maintains stiffness during rapid accelerations.
The motor uses a NEMA 23 frame, so its front face measures 2.3 inches square, which is a common size for compact machinery. Each full step advances the rotor by 1.8 degrees, and those increments accumulate to 200 discrete positions per revolution, giving predictable resolution without feedback devices. Positional deviation stays within ±1.5%, meaning indexing error remains tightly controlled for light machining or metering valves. Environmental ingress is limited by an IP23 housing, which blocks fingers and most falling dirt while still allowing cooling air to circulate through the vents. A standard rotor, single-stack lamination, and C-type winding complete the magnetic circuit for balanced torque across the speed range.
Thermal and electrical limits align with typical automation cabinet practices. The windings use insulation rated at Class B, 130 °C, allowing coil temperature to rise well above ambient without insulation breakdown. The insulation resistance between phases and frame is 100 Megohms, and the insulation test voltage is 340 Vdc. Continuous service is supported from -20 °C to +40 °C, matching unconditioned shop floors. The receptacle connector keeps wiring straightforward, and the short body helps the motor fit crowded machine sections where cable access and mounting depth are limited.
