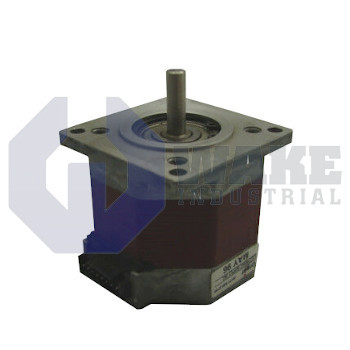

The Pacific Scientific M21NSXC-LNN-NS-02 is a stepper motor in the POWERMAX II M Motors series and features a NEMA 23 frame with enhanced construction. It provides a holding torque of 1.02 Nm, has an IP23 protection class, and operates with a step angle of 1.8 degrees for 200 steps per revolution. This motor supports a maximum surface temperature of 95°C, weighs 0.68 kg, and has Class B insulation rated to 130°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Pacific Scientific’s M21NSXC-LNN-NS-02 is a two-phase step motor in the POWERMAX II M Motors series. Intended for open-loop positioning in indexing tables and general automation, it turns command pulses into fixed angular moves. The unit employs enhanced construction with a standard rotor and follows the NEMA mounting convention, so it fits directly into existing 23-frame brackets. An integral smooth, single shaft and the absence of feedback hardware reduce component count for applications that do not require encoder-based verification. This layout suits machines that rely on repeatable commanded steps rather than closed-loop position confirmation.
The motor occupies a NEMA 23 frame and has a 52.3 mm housing length, providing a compact footprint with sufficient magnetic length. Its winding type C and single-stack armature develop up to 1.02 Nm of holding torque for load retention at standstill. Motion increments are fixed at 1.8 degrees, giving 200 steps per revolution, while step accuracy remains within ±1.5%. A rotor inertia of 0.00001200 kg-m² supports high acceleration, and the 6.35 mm smooth shaft simplifies coupler alignment. Continuous operation is rated from -20 °C to +40 °C, which suits typical cabinet and machine-area conditions.
Windings use Class B, 130 °C insulation that tolerates up to 340 Vdc impulse voltage, with 100 megohms of insulation resistance measured at ambient temperature. External surfaces may reach 95 °C under full load, yet they remain below the thermal limit of the insulation system. Protection is classified as IP23, guarding against finger contact and light spray when the motor is installed inside a ventilated enclosure. The assembly weighs 0.68 kg, which helps keep moving-axis mass low. Power is delivered through a receptacle connector, and the NEMA flange, smooth shaft, and standard rotor geometry allow direct coupling to belts, lead screws, or gears without additional machining.
Frequently Asked Questions about M21NSXC-LNN-NS-02:
Q: What is the holding torque of the M21NSXC-LNN-NS-02 motor?
A: The M21NSXC-LNN-NS-02 has a holding torque of 1.02 Nm, making it suitable for moderate load requirements within its category.
Q: What frame size does the M21NSXC-LNN-NS-02 motor use?
A: This motor features a NEMA 23 frame size, which is a standard frame commonly used for stepper motors in automation systems.
Q: What is the step angle of the M21NSXC-LNN-NS-02 motor?
A: The M21NSXC-LNN-NS-02 operates with a step angle of 1.8 degrees, providing 200 steps per revolution for precise positioning.
Q: What is the shaft diameter and style of the M21NSXC-LNN-NS-02 motor?
A: The shaft has a diameter of 6.35 mm and features a smooth, single configuration.
Q: Does the M21NSXC-LNN-NS-02 motor include encoder feedback?
A: This model does not have an encoder or feedback option, operating strictly as an open-loop stepper motor.
