M21NRXA-JDN-NS-00 Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees

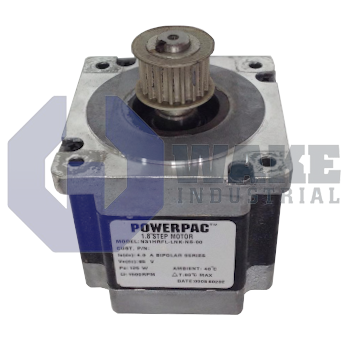

The Pacific Scientific M21NRXA-JDN-NS-00 is a stepper motor in the POWERMAX II M Motors series with a NEMA 23 frame size and low inertia rotor. It features a double smooth shaft configuration, a step angle of 1.8 degrees, and provides 200 steps per revolution. The motor weighs 1.5 pounds and has an axial shaft load capacity of 13 pounds.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The M21NRXA-JDN-NS-00 is a two-phase stepper motor built by Pacific Scientific as part of the POWERMAX II M Motors series. The unit converts discrete pulse commands from an indexer or drive into incremental rotation, making it suitable for positioning axes, pick-and-place heads, and other motion tasks in industrial automation. As a NEMA-framed motor, it fits standard mounting interfaces used in many industrial assemblies. Its step-by-step operating method is well suited to applications that require repeatable indexing and simple motion control.
The motor occupies the NEMA 23 frame envelope and has an overall length of 2.06 in, while the rotor core uses a single stack with an A-type winding. Its construction is labeled Enhanced, and power is carried through a regular leadwire arrangement with a receptacle-style connection. Because the encoder option does not provide feedback, position verification relies on commanded step counts; each command advances the shaft by 1.8 degrees, producing 200 discrete positions per revolution with a step accuracy of ±1.5%. Double-ended smooth shafts extend 0.81 in at the front and 0.75 in at the rear, allowing couplings or a handwheel on either side. Electrical insulation meets Class B, 130 °C limits, provides 100 MΩ of resistance, and withstands 340 Vdc. Continuous service is permitted from -20 °C to +40 °C, and the standard mounting pattern supports installation on common motor brackets.
The double shaft is ground to 0.2500 in diameter and can accept press-fit pulleys or couplings without additional machining. Axial loading up to 13 lb (58 N) and radial forces up to 20 lb (89 N) can be applied without exceeding bearing life limits, allowing the motor to drive belted stages or lead screws directly. Its 1.5 lb (0.68 kg) mass should be considered when sizing mounting plates and moving structures, especially where low inertia and compact packaging are important.
