Product Description:

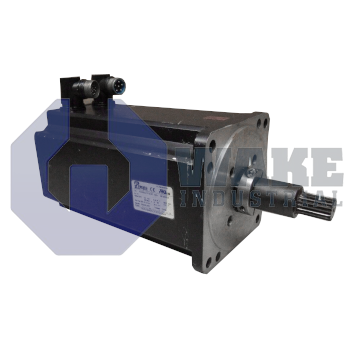

The PMA55Q-10100-00 brushless servomotor is manufactured by Pacific Scientific and is part of the PMA Brushless Motors series. This AC machine couples a permanent-magnet rotor with resolver feedback to deliver precise torque and speed control for pick-and-place axes, printing cylinders, and other automated loads. Electronic commutation eliminates brush wear at the motor and supports smooth response across repeated start-stop cycles.

It is supplied without a holding brake, so stopping torque must be provided by the drive or external mechanics. During stall conditions, the motor can exert 17.0 Nm continuously and up to 51.5 Nm for short-term demand. The rotor inertia is 3.06 kg·m² × 10⁻³, which affects acceleration response and servo tuning. The windings draw up to 7.4 ARMS at stall, and the insulation system is rated for 240-480 V AC, making the unit suitable for inverter systems on common industrial mains. A right-angle connector orientation keeps the power and feedback plugs inside the machine envelope, and stack length code 5 indicates the active iron height. The motor uses a closed keyway shaft and has no special options, which keeps the mechanical interface straightforward.

A square frame dimension of 142 mm eases mounting into metric or NEMA-style brackets while maintaining rigidity for rapid moves. Power is routed through a 6PP (6-Pin Power) connector, allowing separate phases and protective earth to lock in place with one fitting. Position feedback comes from a Resolver, which provides rotor angle information during vibration and temperature swings. With a mass of 15.0 kg, the motor offers useful thermal capacity for cyclic duty and adds mechanical damping for lightly loaded axes. This layout suits conveyors, indexing tables, and similar motion modules where compact cabling and repeatable feedback are important.
