STF5372-3750-61-82BC

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}

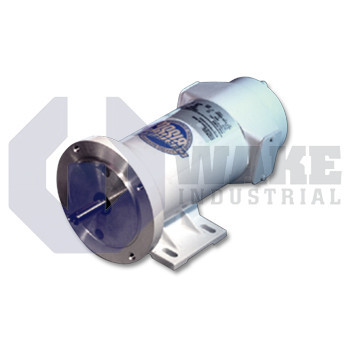

Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 145TC/182 NEMA Frame and a Current (Amps) of 9.3.

STF5372-3750-61-82BC

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 145TC/182 NEMA Frame and a Current (Amps) of 9.3.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a STF5372-3750-61-82BC to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen continues to penetrate new market frontiers and widen its clientele base, thanks to its integrated systems and innovative products. Kollmorgen is best suited to address motion control needs and challenges as it has modern facilities with technologically advanced tools and devices, skilled and experienced human resources as well as research, development and rigorous testing processes. All these work together to ensure that customers receive value for their money through getting efficient, future proof, innovative, customizable and extremely rugged automation components. Kollmorgen also offers an array of products such as servo drives, permanent magnetic motors, electric controllers, gearing, CNC, servo motors as well programmable drive controllers.

The STF5372-3750-61-82BC permanent magnetic motor is Kollmorgen’s 180V and 2 HP STF motor series. Its enclosure is TENV and the NEMA is 45TC/182. It features a removable base and its speed is about 1750 revolutions per minute. This unit also features insulation class H and it is also UL recognized. Its BISSC authorization number is 301 as per the BISSC standard 29.

The STF5372-3750-61-82BC is designed to function optimally and sustainably. However, this only occurs if you satisfy the parameter values requirement. This unit’s continuous current stands at 9.3 A while the peak current is estimated to be 93 A. The torque constant stands at 7.90 lb-in/A, the continuous torque is 72 lb-in and the estimated resistance value is 0.77 Ohms. You’ll need YPOO574 brush model during replacement for this unit and each replacement requires a pair of brushes. The STF5372-3750-61-82BC motor weighs about 84 lbs, is 18.30 in long and its configuration/ dimension (facing page) is 4. The unit’s estimated inductance value is 6.80 mH and the moment of inertia value is estimated to be 39.3 lb-in.

  • STF5372 3750 61 82BC
  • STF5372-375O-61-82BC
  • STF537237506182BC

STF5372-3750-61-82BC Technical Specifications

Adapter Kit Size:
Product Code: FGS2342
Configuration (facing p age): 5
NEMA Frame: 145TC/182
Enclosure: TENV
Current (Amps): 9.3
Torque (lb-in.): 72
Current (Peak/A): 93
Torque Constant (lb-in./A): 7.9
Resistance (Ohms): 0.77
Inertia (lb-in.): 39.3
