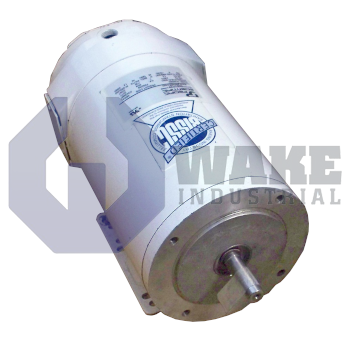

STF5332-3748-61-56BC Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
The STF5332-3748-61-56BC is a Permanent Magnet DC Motor from the Pacific Scientific Permanent Magnet DC Motors series. It has a horsepower rating of 1.0 hp and provides a continuous torque of 36.0 lb-in at 1750 rpm. The motor weighs 41 pounds, has a welded base, and features a TENV enclosure with an IP65 protection rating.
Internal Product Review
The STF5332-3748-61-56BC is a Pacific Scientific permanent magnet DC motor with a TENV enclosure and 1.0 hp output. Continuous torque of 36.0 lb-in and rated speed of 1750 rpm support steady performance in demanding drive applications. IP65 protection adds strong installation value, making this motor an excellent choice for dependable DC motion control.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The STF5332-3748-61-56BC is a permanent-magnet DC motor manufactured by Pacific Scientific and supplied within the Permanent Magnet DC Motors series. A welded base allows direct foot mounting to standard machinery, while the NEMA 56C flange aligns the shaft to gearboxes or pumps without additional adapters. The totally enclosed non-ventilated housing prevents airflow through the frame, which suits dusty plant floors. At 13.30 inches overall length and 41 lb shipping weight, the unit fits compact drive bays without exceeding typical lifting limits. In automated material-handling lines, the motor provides regulated shaft power for conveyors, mixers, or positioning tables that rely on constant-speed DC drives.
Its continuous operating point uses a winding current of 4.6 A, which produces 36.0 lb-in of shaft torque while limiting thermal rise inside the lamination stack. The armature is designed for a nominal bus of 180 VDC; at that voltage the motor runs at a base speed of 1750 rpm, giving direct coupling to standard 1:1 belt transmissions. Electrical time response is shaped by an inductance of 32.00 mH and a resistance of 2.40 Ω, so current loops in the drive amplifier must accommodate the stored magnetic energy when reversing load.
For short overloads, the winding can accept a surge of 36.0 A, allowing rapid acceleration of inertial loads before duty reverts to the continuous region. Each ampere contributes approximately 8.00 lb-in/A thanks to the motor’s torque constant, which simplifies feed-forward calculations in closed-loop controllers. When run at rated speed, this electromagnetic package yields 1.0 hp at the output shaft. An IP65 rating seals the bearing and terminal areas against dust and low-pressure water jets, complementing the welded base for floor-level installation in wash-down or outdoor enclosures.
