Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 4.6.

SRF3752-4984-84-5-56BC-CU

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a 56C NEMA Frame and a Current (Amps) of 4.6.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a SRF3752-4984-84-5-56BC-CU to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

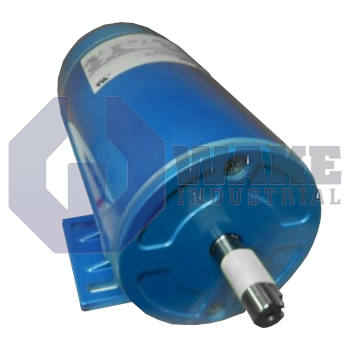

SRF3752-4984-84-5-56BC-CU is the code designation for a Pacific Scientifics’ Permanent Magnet DC-Motor built in the SRF collection of constant motion brushless series of motors by the Pacific Scientific. These are employed in many applications all across the industry.  This distinctly designed motor is set on a regular NEMA Frame of classification 56C with a TEFC enclosure and has the nominal current value of 4.6 Amps with the peak current as 41 Amps and an 8.2 lb-in/A torque constant. It generates a continuous torque of 36 Lb-in.

The SRF3752-4984-84-5-56BC-CU is a 180 Volts, 1 HP motor that has a length is 13.25 in and weighs 29 pounds, is one of the heavier motors in this series and is designed incorporating the industry standards that include the CE, UL, and CSA certifications and comes with its laminated interior utilizing "class-H” insulation which makes it very safe to operate and reduces the wear and tear so that there are virtually no maintenance needs for a long time.

Its heavier frame and components made of durable material makes it stable resulting in a fairly smooth, noise-free operation. It is simple to use and despite the ordinary appearance with modest features, it fits in well with many applications and hence you will find it being used extensively in all kinds of industrial and other applications. These include conventional industrial appliances like machine tools, equipment handling, blowers, fans and pumps, power tools, etc. Quite often you will also find its use by the hobbyists in small-sized applications requiring movement such as robotics and movement specific modules. These motors are hardy, robust and are capable of giving many years of trouble-free performance.

  • SRF3752 4984 84 5 56BC CU
  • SRF3752498484556BCCU

SRF3752-4984-84-5-56BC-CU Technical Specifications

Adapter Kit Size
Product Code FGS2752
Configuration (facing p age) 2
NEMA Frame 56C
Enclosure TEFC
Current (Amps) 4.6
Torque (lb-in.) 36
Current (Peak/A) 41
Torque Constant (lb-in./A) 8.2
Resistance (Ohms) 1.8
Inertia (lb-in.) 12
