SRF3643-4593-7-56C Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees

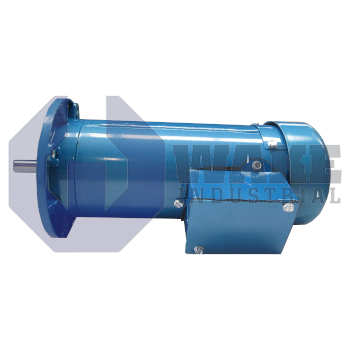

The Pacific Scientific SRF3643-4593-7-56C is a permanent magnet DC motor from the Permanent Magnet DC Motors series. It offers a rated power of 1 HP, a rated speed of 1750 RPM, and operates at 90 VDC with a continuous duty rating. This SCR rated motor features a TEFC enclosure and NEMA C face mounting, with a rated current of 9.6 amps.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Pacific Scientific manufactures the SRF3643-4593-7-56C within its Permanent Magnet DC Motors series. As a permanent-magnet DC machine, the unit converts direct-current energy into controlled mechanical rotation for conveyors, indexing tables, and other speed-regulated axes in automated lines. It integrates with SCR drives and standard NEMA C-face gearheads, supplying constant torque across its rating for low-voltage, variable-speed sections of industrial equipment. That arrangement supports straightforward integration in machines that use armature-voltage control rather than closed-loop servo hardware.
At the electrical interface, the motor is rated for 90 VDC, allowing it to pair directly with standard SCR speed controllers that modulate armature voltage. Under that supply, the armature current reaches 9.6 A, a value used to size branch protection and cable gauge. The electromagnetic package delivers 1 HP of shaft power for compact pumps, fans, and similar driven loads. Nominal output speed is 1750 RPM, so common reduction ratios can be selected with familiar motor-speed conventions. The construction is intended for continuous duty, so temperature rise remains within insulation limits during uninterrupted operation. The rated operating point also supports direct calculation of torque and required reduction when the motor is paired with a gearbox or belt drive.
The motor is SCR rated, so its commutation reactance and brush design tolerate the ripple current produced by single-phase rectifier drives without excessive sparking. A TEFC enclosure shields the windings from airborne dust, and an external fan maintains airflow during operation. Installation is simplified by the NEMA C-face mount, whose standardized flange matches reducers and hydraulic pumps without shims or alignment plates. Because it uses a permanent-magnet DC design, no field winding is required, which reduces overall power consumption and supports quick torque response during speed changes commanded by the drive system. The absence of a field winding also removes the need for separate field excitation wiring, which simplifies the motor connection.
Frequently Asked Questions about SRF3643-4593-7-56C:
Q: What type of control is the SRF3643-4593-7-56C motor compatible with?
A: The SRF3643-4593-7-56C is an SCR rated permanent magnet DC motor, optimized for compatibility with SCR controllers.
Q: What is the duty cycle rating of the Pacific Scientific SRF3643-4593-7-56C motor?
A: This model is rated for continuous duty operation, suitable for sustained performance without interruption.
Q: What type of enclosure does the SRF3643-4593-7-56C DC motor feature?
A: A Totally Enclosed Fan Cooled (TEFC) enclosure is included for added protection against dust and contaminants.
Q: What is the rated power output of the SRF3643-4593-7-56C motor?
A: The rated power output for the SRF3643-4593-7-56C motor is 1 horsepower (HP).
Q: What mounting configuration does the SRF3643-4593-7-56C motor provide?
A: This motor uses a NEMA C Face mounting configuration for installation.
