SR5348-4592-45B
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The SR5348-4592-45B motor features a stainless steel 304 build, a compact diameter of 45 mm, a length of 92 mm, and a tensile strength of 700 MPa. Part of the Permanent Magnet DC Motors by Pacific Scientific, it operates between -50 °C and 400 °C and boasts excellent corrosion resistance for versatile applications.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

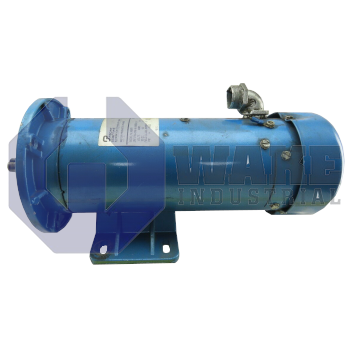

The SR5348-4592-45B is a DC motor made by Pacific Scientific that is used in situations where careful control of speed and torque is needed. The motor gives off 2 horsepower and runs on 180 VDC. It is often a part of industrial automation systems that need to control movements reliably. The DC motor can be placed on a base and has slotted feet to keep it in place mechanically.
With an armature draw of 9.3 amps, the SR5348-4592-45B DC motor works at a speed of 2500 RPM. The level of the task is marked as SPECIAL. Most likely, the motor was made with a shunt field winding, which is common in 180 VDC setups. It has open brush slots that do not come with brush covers. In the brush description, the type of brush used is shown as "110V Pac Sci" and has an angled tip with clips. The terminals A and B are both suitable for plugging in AC. At Terminal C, the motor is connected to the positive terminal of the inductor, and at Terminal D, it is connected to the negative terminal of the capacitor for the connection. The motor is connected to the circuit in a series configuration, which also includes an inductor and a capacitor.
The <
Frequently Asked Questions about SR5348-4592-45B:
Q: Why are SR5348-4592-45B brush holders exposed without covers?
A: Exposed brush holders allow quicker maintenance and inspection cycles. This is critical in systems where operational downtimes need to be minimized.
Q: Does SR5348-4592-45B have a shunt field winding design?
A: Yes, it likely uses a shunt field winding. This provides consistent field strength for stable motor operation at various load levels.
Q: Why does SR5348-4592-45B connect to an inductor-capacitor?
A: The inductor-capacitor pair in series filters electrical noise and stabilizes current. It improves motor performance under varying load conditions.
Q: Do SR5348-4592-45B terminals support dual AC input?
A: Yes, terminals A and B are for AC input. These are configured to support systems supplying 110V or 220V AC input.
Q: How does SR5348-4592-45B achieve 2500 RPM speed?
A: It uses a 180 VDC armature with controlled current input. The design enables constant speed under its rated load.
