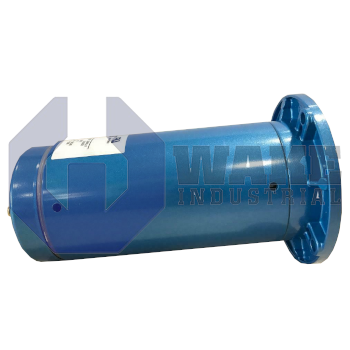

Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a Voltage (DC) of 125 and a Current (Amps) of Factory Assigned.

SR3640-1562-1

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a Voltage (DC) of 125 and a Current (Amps) of Factory Assigned.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a SR3640-1562-1 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The 1/8 -1 HP, 90 VOLT, 1750 RPM NEMA C face SR3640-1562-1 comes with a removable based. The UL Recognized and CSA Certified motor has Class H insulation. It accepts the tachometer adaptor kit. With the TENV enclosure the SR3640-1562-1 falls under the NEMA frame. The continuous current of the SR3640-1562-1 is 2.6 Amps and its continuous torque rating is 18.0 Ib-in.  The SR3640-1562-1 has a 40.0 current peak and has a 7.6 torque constant. Its inertia is 6.3 lb-in and the SR3640-1562-1 has 3.3 Ohms resistance.

The SR3640-1562-1 has a gasketed conduit box with large wiring compartment for an easy termination. It consists of anti-cog magnets for the smooth low speed operation. It also results high over current capacity and dynamic braking without causing any damage. The polyester impregnated armature of the SR3640-1562-1 is installed for the mechanical and electrical integrity of the motor.

The SR3640-1562-1 weighs 27 lbs and has a total length of 12.13 inches. Always keep in mind the weight and length of the motor while mounting it. It is always better to follow the instructions given in tachometer adapter kit before operating the motor. You can also monitor the motor speed by following the instructions and maintain the speed of the motor throughout a wide range. The kit also includes instructions for the careful mounting of the motor. Easily mount the user supplied GE, Servo-Tek and Baldor tachometer to the adapter.

Please note that you can not apply the adaptor to every kind of motor, and each adaptor can be applied to a specific motor. If you are still confused about how to operate it, make sure you contact the manufacturer for the safe operation.

  • SR3640 1562 1
  • SR364015621
  • SR364O-1562-1

SR3640-1562-1 Technical Specifications

Adapter Kit Size:
Product Code: Factory Assigned
Voltage (DC): 125
Enclosure: Factory Assigned
Current (Amps): Factory Assigned
H.P.: 3/4
RPM: 3600
