BA3724-4489-56C
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days
The BA3724-4489-56C motor features a rated voltage of 18.8 V, a nominal speed of 1750 RPM, field-replaceable brushes, and a NEMA C Face with a removable base for mounting. Part of the Permanent Magnet DC Motors series by Pacific Scientific, it is UL 1004 recognized and CSA certified for continuous-duty applications.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

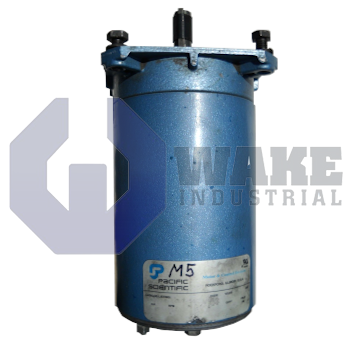

The BA3724-4489-56C DC motor developed by Pacific Scientific is a low-voltage motor. This motor complies with NEMA standards. The product’s highlights include its reliable performance and high efficiency. This device features a rugged construction. The unit design indicates a NEMA C face with a removable base. It features an armature assembly that comprises its bearings. This motor incorporates two brushes in its design.
This product is usually operated by a battery. The device tends to overheat if the current draw exceeds the value specified on its nameplate. The unit has Class H insulation. It doesn’t support any machine control interface. This motor is cUL Recognized. The product rotates at a standard and constant speed of 1750 RPM. This device’s nameplate contains several other details, such as armature voltage, full-load current, rated power, and duty rating. The unit needs regular maintenance for effective operation. It tends to run in the wrong direction if its power leads are reversed.
This motor needs a power supply disconnection before its brushes are replaced. The product’s brushes and commutator are prone to wear and tear in continuous light-load situations. This device houses permanent magnets with an anti-cogging property that contributes to smooth operation even at a low speed. The unit is deployed solely for industrial and commercial applications. It features enhanced durability because of its fused commutator. This DC motor’s electrical and mechanical integrity is ensured by the polyester impregnation on its armature. The product is primarily operated in electric forklifts. This device is classified as a BA series motor. The unit’s bearings are sealed, which protects them from environmental contaminants. It may fail to run due to instances like worn brushes, an open armature, or loose power leads.
Frequently Asked Questions about BA3724-4489-56C:
Q: How does the BA3724-4489-56C motor operate?
A: The BA3724-4489-56C motor operates with a low-voltage source such as a battery.
Q: What direction does the BA3724-4489-56C motor run in?
A: The BA3724-4489-56C motor typically runs in the clockwise direction when viewed from the shaft.
Q: How is the A1 terminal of the BA3724-4489-56C motor connected?
A: The A1 terminal of the BA3724-4489-56C motor is connected with a positive voltage.
Q: How is the A2 terminal of the BA3724-4489-56C motor connected?
A: The A2 terminal of the BA3724-4489-56C motor is connected with a negative voltage.
Q: How can the direction of rotation of the BA3724-4489-56C motor be changed?
A: The direction of rotation of the BA3724-4489-56C motor can be changed by reversing the connections at its A1 and A2 terminals.
