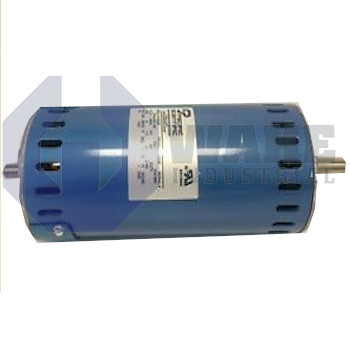

The Pacific Scientific BA3644-4249-1-48C is a permanent magnet DC motor from the Permanent Magnet DC Motors series. It delivers a continuous current of 28.2 Amps and a continuous torque of 27 lb-in, with a shaft diameter of 0.6250 inches. This motor features a TENV enclosure and a flange outside diameter of 6.50 inches.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The BA3644-4249-1-48C motor is a permanent-magnet DC unit manufactured by Pacific Scientific and supplied in the company’s Permanent Magnet DC Motors series. It serves as a compact torque source for industrial automation, turning constant-voltage power from a drive or rectified supply into bidirectional shaft motion that can be finely regulated by the connected controller. Because it develops torque directly from the armature current, the motor is suited for conveyors, feed rolls, and indexing mechanisms that demand steady speed and prompt reversal without an external field winding.
The continuous armature current limit is 28.2 A, establishing the maximum load it can carry indefinitely without exceeding its thermal rating. When operated at that current, the motor delivers 27 lb-in of continuous shaft torque for sustained duty cycles. A totally enclosed, non-ventilated enclosure classified as TENV keeps internal parts free of dust and oil while relying on the housing surface area for heat dissipation, a layout that simplifies installation where forced airflow is unavailable. Electrical dynamics are characterized by an inductance of 0.22 mH. This low value allows rapid current changes so speed and torque settle quickly after command steps. The armature is machined with a shaft diameter of 0.6250 in with a -0.0005 tolerance to interface directly with couplings or pulleys without additional machining.
Mounting follows NEMA C-face conventions, with a flange outside diameter of 6.50 in and a bolt circle of 5.875 in for four evenly spaced fasteners. Those fasteners engage tapped holes specified as 3/8-16 UNC-2B, allowing quick attachment to gearboxes or pump brackets. A pilot diameter of 4.500 in with a 0 to -0.003 in tolerance and a maximum pilot length of 0.16 in center the motor precisely on the driven equipment. Output torque is transferred by a keyed connection, and the key measures 0.188 × 1.38 in to provide positive drive and resist slip under full rated load.
Frequently Asked Questions about BA3644-4249-1-48C:
Q: What is the continuous torque output of the BA3644-4249-1-48C motor?
A: The BA3644-4249-1-48C delivers a continuous torque of 27 lb-in for sustained operation.
Q: What is the continuous current rating for the BA3644-4249-1-48C?
A: This motor operates with a continuous current draw of 28.2 A.
Q: What is the shaft diameter of the BA3644-4249-1-48C motor?
A: The motor's shaft diameter is 0.6250 inches, allowing compatibility with standard couplings.
Q: What type of enclosure does the BA3644-4249-1-48C feature?
A: The BA3644-4249-1-48C uses a TENV enclosure style, which means it is totally enclosed and not ventilated.
Q: What is the mounting bolt circle size on the BA3644-4249-1-48C motor?
A: The mounting bolt circle for this motor measures 5.875 inches, fitting common industrial mounting requirements.
