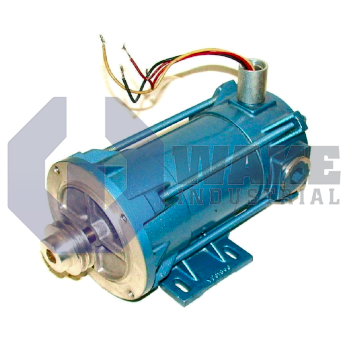

The Pacific Scientific BA3614-4648-9-56BC is a permanent magnet DC motor from the Permanent Magnet DC Motors series. It features a continuous current of 21.1 Amps, a rated voltage of 12 Volts, and a rated power of 1/4 HP. This motor has a continuous torque of 9.0 lb-in, a flange diameter of 6.50 inches, and weighs 15 pounds.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Pacific Scientific manufactures the BA3614-4648-9-56BC direct-current motor as part of its Permanent Magnet DC Motors series. The unit is a brush-type actuator that converts low-voltage electrical energy into constant rotation for conveyors, indexing tables, and other position-independent drives in automated equipment. Its permanent-magnet design also supports simple speed control from a DC supply without requiring a separate field circuit. By supplying steady torque from a compact NEMA 56C frame, the motor serves as a straightforward power element that couples to gearboxes or pulleys without additional electronics.
Electrical ratings describe how the motor should be driven. A nominal input of 12 V lets the winding draw up to 21.1 A continuously, a pairing that produces 9.0 lb-in of shaft torque during steady operation. The electromagnetic conversion is characterized by a 0.51 lb-in/A torque constant, meaning each ampere adds roughly half a pound-inch of torque. Low copper losses come from an armature resistance of 0.07 Ω, while dynamic response is aided by an armature inductance of 0.27 mH. Mounting geometry follows the 56C pattern with a 5.875-inch bolt circle, a 4.500-inch pilot, and a 6.50-inch flange that centers the housing on gear reducers. Power is transmitted through a 0.6250-inch keyed shaft that accepts a 0.188 × 1.38-inch key.
The enclosure and overall size suit tight installations. The totally enclosed non-ventilated casing is classified as TENV, so heat dissipates through the steel shell without external airflow. Within its overall length of 8.13 inches, the machine delivers 1/4 HP at rated speed, aligning with fractional-horsepower drives that favor battery or low-voltage supplies. Mass is held to 15 lbs, reducing inertia when the motor is mounted on adjustable slides or lightweight frames. The NEMA 56C face, combined with the previously noted pilot and bolt circle, simplifies interchange with standard reducers, while the keyed 0.6250-inch shaft helps keep couplings from slipping under continuous torque.
Frequently Asked Questions about BA3614-4648-9-56BC:
Q: What is the rated voltage of the BA3614-4648-9-56BC motor?
A: The BA3614-4648-9-56BC operates at a rated voltage of 12 V, making it suitable for low-voltage DC applications.
Q: What is the continuous torque output of the BA3614-4648-9-56BC?
A: This motor provides a continuous torque output of 9.0 lb-in for steady mechanical load applications.
Q: What type of enclosure does the BA3614-4648-9-56BC motor have?
A: The enclosure style for this model is TENV, which stands for Totally Enclosed Non-Ventilated.
Q: What is the continuous current rating for the BA3614-4648-9-56BC?
A: A continuous current of 21.1 A is supported by this model for sustained operation.
Q: What is the shaft diameter of the BA3614-4648-9-56BC motor?
A: The shaft diameter on the BA3614-4648-9-56BC motor measures 0.6250 inches.
