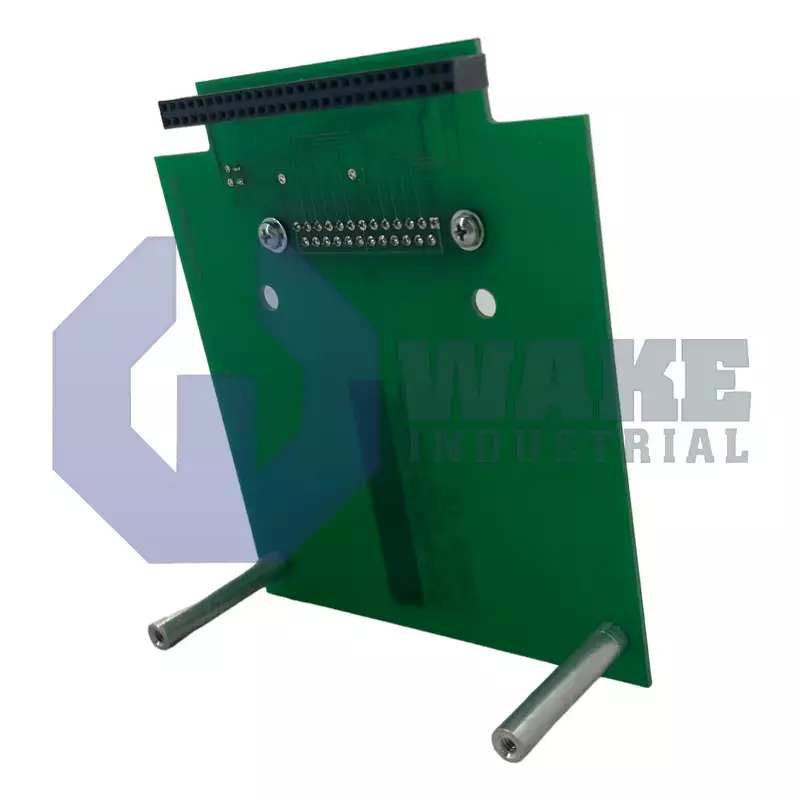

The Pacific Scientific CA950-IO is part of the OC950 Option Cards series and supports 21 channels for input and output. It features a 50-contact receptacle field connector, 25-contact male D-Sub host connector, and a maximum logic voltage of 40 volts. The card uses open drain DMOS output devices and can handle an output sink current of up to 100 milliamps.
Internal Product Review
The CA950-IO is a Pacific Scientific I/O option card that offers 21 channels and an open drain DMOS output stage for dependable machine interfacing. A 50-contact receptacle and 25-contact male D-Sub support clean integration in established control architectures. Strong signal handling and practical connectivity make the card a highly capable OC950 option.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Pacific Scientific manufactures the CA950-IO digital input/output option board as part of the OC950 Option Cards series. Designed for rack-based motion or process controllers, the card extends discrete control capacity by interfacing external limit switches, photo eyes, relays, and solenoids with the host CPU. By translating 24 V-style field signals into rack logic levels, it provides a compact method for integrating machine status indications and command outputs in industrial automation cells.
The CA950-IO supports 21 channels, each passing through a 100 µs digital filter that suppresses contact bounce and fast transients before the controller samples the state. Field wiring lands on the front-panel 50-contact receptacle, while rack communication returns through a 25-contact male D-sub to maintain a clear separation between plant cabling and internal logic. Input stages are biased by a 10 kΩ pull-up to +12 VDC so inactive lines remain at a defined high level, and a transition to logic low is recognized once the voltage drops below 1.0 V minimum. The card occupies only one slot, and up to 16 modules can share the common 5 V backplane when the user rail is held at 5 V ±5%. A 50-pin Opto 22 Gen 4 header links the board to the OC950 rack for power and strobed data exchange.
On the output side, switching devices are open-drain DMOS transistors that can sink 100 mA per channel without exceeding the specified thermal limits. These drivers tolerate logic rails up to 40 V, giving ample margin for typical 24 V field loads, and they treat the line as high only after the incoming signal rises above the specified 3.5 V maximum threshold to prevent false retriggers. The user supply rail may source as much as 200 mA to external sensors through the card’s auxiliary terminals, so moderate current loads can be powered directly from the rack.
