Product Description:

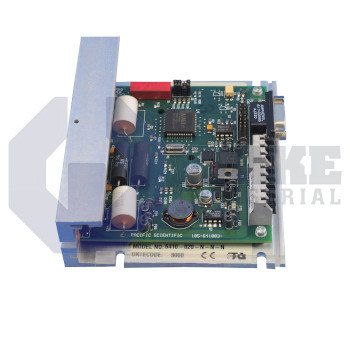

The 6410-024-N-N-N is a microstepping drive manufactured by Pacific Scientific within the 6410 Stepper Drives series. Designed for industrial automation, it converts high-speed pulse trains from a motion controller into controlled phase currents that advance a hybrid stepper motor by fixed microsteps. This supports repeatable positioning of conveyors, labelers, and vision stages while keeping controller logic simple. The drive mounts on a panel inside a control cabinet and provides motor motion without requiring commutation feedback.

For input logic, the amplifier responds to Step and Direction signals, so only two differential lines are needed to command speed and position. Its DC link operates reliably between 24 VDC and 75 VDC, allowing use with low-voltage supplies or rectified three-phase sources. Continuous motor excitation is limited to 5 A RMS, while short acceleration bursts can reach 7.1 A peak before current foldback engages. Internal counters accept very high pulse rates, which supports fine microstep operation when the drive is paired with suitable motors. This electrical range suits many NEMA size 23 and 34 motors used in light-duty material-handling axes.

Thermal management relies on natural convection because the unit is supplied without a heat sink. To protect internal components, ambient temperature must stay below 50 °C, and the aluminum chassis itself must not exceed 60 °C during sustained operation. When the drive is used at high pulse rates, these limits should be checked at the mounting surface. The controller occupies only 5 × 1.5 × 4.3 inches of panel space and weighs 1.0 lb, so it can be mounted close to the motor power terminal block. Command inputs remain valid up to 2.0 MHz, which helps preserve speed capability even when finer microstep divisions are selected in thermally constrained enclosures.
