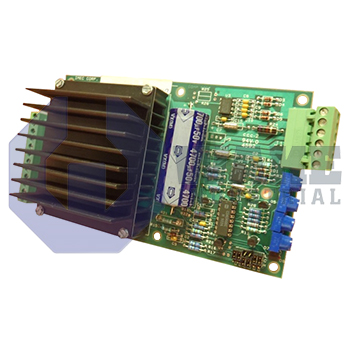

105-524001-03

Product Description:

The 105-524001-03 board indexer/driver is listed among the 105 motion control card series from Pacific Scientific. The board indexer/driver comes with a one-year warranty period. The manufacturer – Pacific Scientific, is known for its expertise in the field of manufacturing motors and their accessories. The unit is used for controlling and powering component cards and boards in different servomotors and stepper motors. These cards and boards include I/O emulation boards, drive and PC CNC controls, PC personality modules, PC boards, and motion control boards. It is widely deployed in a wide range of digital industrial applications.

The board indexer/driver has excellent control capability and meets high-performance requirements. The device is an optional plug-in and features very good adaptability and durability. One of the biggest plus points of this accessory is that it supports installation with minimal effort. The unit comes with three main circuits, namely, a power supply circuit, a signaling device circuit, and a self-diagnosis circuit. The signaling device circuit highlights the processed information about the present status of the connected sensors and the device. The self-diagnosis circuit of the indexer/driver assists in self-monitoring of its status when power is applied to the unit. The control board ensures that the instructions are executed correctly according to the requirement.

Pacific Scientific was recently taken over by Kollmorgen. However, this has not affected the availability of the most popular products from the manufacturer. The other types of optional plug-ins in the 105 motion control card series comprise a programmable option card, an I/O interface adapter board, an option memory card, an emulator board, and a SERCOS interface option card. The board indexer/driver weighs close to 0.47kgs.
