MIV22-3-V1 Okuma
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1006-2259-015-065
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

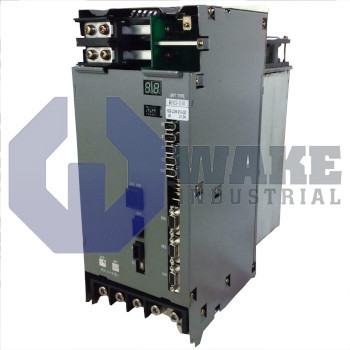

The Okuma MIV22-3-V1 is an inverter unit from the MIV Servo Drives series and weighs 11.2 kilograms. This unit features a DC link supply of 300 VDC, control power of 24 VDC, and can control one axis. It has internal and external cooling fans, a 7-segment LED status display, and dimensions of 380 mm height, 150 mm width, and 325 mm depth.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MIV22-3-V1 inverter unit is produced by Okuma within the MIV Servo Drives series. As an inverter unit, it pairs with the manufacturer’s servo drives to convert DC bus energy into regulated three-phase output for a single axis and to return regenerative power to the link. In automated machine tools, this module coordinates drive torque, speed, and position through the shared servo, encoder, and converter link. It serves as the electrical link between the CNC control and the mechanical feed system during axis motion.
It draws control logic power from 24 VDC, which keeps diagnostic circuits active when the main power is isolated. The main DC link requires 300 VDC, supplied by the spindle power source, to energize the IGBT bridge that drives the motor windings. The nominal L-side output is 22 kW, equivalent to 30 hp, which suits medium machining-center axes. Because the unit is rated for 1 controlled axis, its current sensing and gating are dedicated to a single servo channel. Cooling is handled by internal and external fans that move air through the heat sink and enclosure vents, while communication between the drive, encoder feedback, and converter boards is carried on the integrated servo, encoder, and converter bus.
The housing measures 380 mm in height, 150 mm in width, and 325 mm in depth, giving the unit a cabinet-friendly shape for vertical mounting. It weighs 11.2 kg, which supports manageable handling during installation. Operational status, alarms, and axis codes appear on a front-mounted 7-segment LED, allowing quick fault review without external tools. Power terminals accept M6 hardware at XT1 and M8 hardware at XT2, providing secure clamping for the DC bus and motor leads. The fan and vent arrangement helps keep internal component temperatures within normal operating limits during continuous duty.
Frequently Asked Questions about MIV22-3-V1:
Q: What control power supply voltage does the MIV22-3-V1 require?
A: The MIV22-3-V1 operates with a control power supply of 24 VDC.
Q: How many axes can the MIV22-3-V1 drive control?
A: This drive is designed to control one axis in motion systems.
Q: What type of cooling fans are used in the MIV22-3-V1 drive?
A: The MIV22-3-V1 features both internal and external cooling fans for temperature management.
Q: What is the L side capacity in kilowatts for the MIV22-3-V1?
A: The L side capacity of this unit is rated at 22 kW, supporting significant power requirements.
Q: What type of status display does the MIV22-3-V1 have?
A: A 7-segment LED provides status display on the MIV22-3-V1 for easy monitoring.
