MIV102A-1-B5 Okuma
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1006-2325-0816012
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

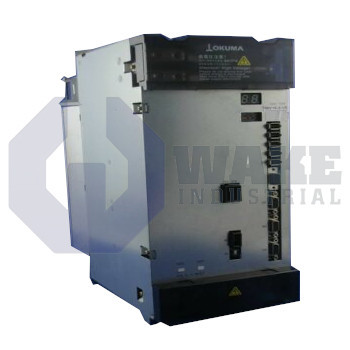

The Okuma MIV102A-1-B5 is a servo drive in the MIV Servo Drives series and is classified as an inverter unit. It operates with a DC bus supply of 300 VDC and a control power of 24 VDC, and is compatible with BL motors and PREX motors. This second generation drive measures 380 mm in height, 60 mm in width, 295 mm in depth, and weighs 5.5 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MIV102A-1-B5 is an inverter unit produced by Okuma for the MIV Servo Drives series. It converts the shared DC link energy of a multi-axis system into regulated three-phase output that governs torque and speed loops in CNC machining centers and other automated equipment. Positioned between the motion controller and the servo motor, the module provides the power stage that enables coordinated interpolation and precise positioning required for industrial automation tasks. This arrangement allows the control system to send motion commands while the inverter supplies the regulated output needed for stable axis response.
The unit operates from a DC bus of 300 VDC, establishing the maximum voltage supplied to the motor windings. Control logic is maintained by a separate 24 VDC supply, so parameters and diagnostics remain available when the main bus is powered down. A continuous-to-peak capacity window of 1.8 × 2.8 kW matches the thermal margin of the output transistors. Compatibility with BL motor and PREX motor types allows use on high-response axes or energy-efficient spindles without changing the basic drive setup. The inverter control board specified as ICB1 works with type 5 control, aligning switching patterns and feedback handling with current Okuma motion algorithms for stable speed and torque regulation.
The housing weighs 5.5 kg, which supports direct panel mounting without additional support brackets. Overall height is 380 mm and depth is 295 mm; with a front width of 60 mm, several units can be stacked in a narrow cabinet while still leaving airflow channels. Classified as a Second Generation inverter, the module includes updated heat-sink fins and gate drivers for improved thermal handling in compact enclosures. Connection hardware uses an XT1 power terminal secured by an M6 screw and an XT2 control terminal tightened with an M4 screw for secure electrical attachment.
Frequently Asked Questions about MIV102A-1-B5:
Q: What power capacities are supported by the MIV102A-1-B5 servo drive?
A: The MIV102A-1-B5 supports applicable capacities of 1.8 kW and 2.8 kW, allowing flexible motor use within this power range.
Q: Which motor types can be used with the MIV102A-1-B5 drive?
A: This inverter unit is compatible with both BL motors and PREX motors.
Q: What control power voltage does the MIV102A-1-B5 need?
A: The MIV102A-1-B5 operates with a 24 VDC control power requirement.
Q: What is the required DC bus supply voltage for the MIV102A-1-B5?
A: A DC bus supply of 300 VDC is required for the operation of this unit.
Q: Which inverter control board type is used in the MIV102A-1-B5?
A: The ICB1 type inverter control board is used in the MIV102A-1-B5 model.
