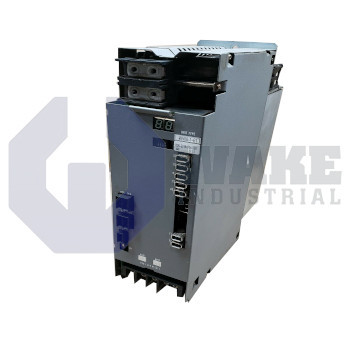

The Okuma MIV08-1-B1 is part of the MIV Servo Drives series and supports BL and PREX motor types with a single axis. Rated for 7.5 kW or 10 horsepower motors, this inverter unit features servo, encoder, and converter communication links. It measures 380 mm in height, 100 mm in width, 325 mm in depth, and weighs 7.3 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MIV08-1-B1 inverter unit is manufactured by Okuma and belongs to the MIV Servo Drives series. Designed for machine-tool automation, it serves as the power stage that drives a single mechanical axis by modulating current for BL or PREX synchronous motors. The module links to the controller through dedicated servo, encoder, and converter buses so commanded motion and real-time feedback share the same communication backbone. Within an Okuma cabinet, it pairs with a common converter to deliver regulated three-phase output that helps maintain positioning accuracy during cutting or material-handling cycles.
The drive is sized for motors up to 7.5 kW, which sets the output range for the connected axis. All real-time data move across the multifunction Servo / Encoder / Converter link, which reduces external wiring and keeps feedback synchronized with the current loops. Internal logic and I/O are supplied from a separate 24 VDC control rail so field sensors stay energized even when the main bus is off. Power to the inverter bridge is drawn from a shared 300 VDC line, enabling regenerative energy from braking axes to be reused elsewhere in the system. The ICB1 control board, ROM type 1 memory, and a 7-segment LED panel provide parameter storage and local status indication without opening the cabinet.
A 10 hp horsepower rating supports compatibility with common spindle and feed motor listings, while the housing measures 100 mm wide, 325 mm deep, and 380 mm high. These compact dimensions let multiple inverters mount side by side with adequate airflow between cards. At 7.3 kg, the unit remains relatively light for cabinet mounting and handling. The slim housing supports dense cabinet layouts where space and access around adjacent components are limited.
Frequently Asked Questions about MIV08-1-B1:
Q: What is the maximum applicable motor capacity for the MIV08-1-B1 drive?
A: The MIV08-1-B1 is designed for use with motors up to 7.5 kW in capacity.
Q: How many motor axes can the MIV08-1-B1 drive control?
A: This unit supports a single axis, allowing control of one motor per drive.
Q: What communication links are available on the MIV08-1-B1 drive?
A: The MIV08-1-B1 interfaces through Servo, Encoder, and Converter communication links.
Q: What is the required control power input for the MIV08-1-B1 unit?
A: The control power requirement for this drive is 24 VDC, which needs to be supplied externally.
Q: What type of status display does the MIV08-1-B1 provide?
A: This model features a 7-segment LED for status display and diagnostics.
