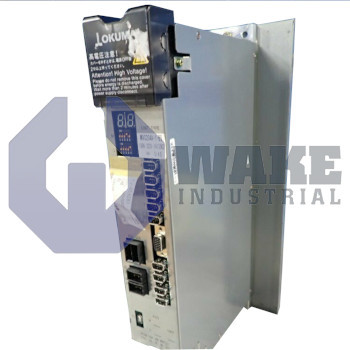

MIV0204A-1-B5 Okuma
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1006-2331-1641003
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Okuma MIV0204A-1-B5 is a second generation inverter unit designed as part of the MIV Servo Drives series. It features a 2-axis configuration and supports BL and PREX motor types. The unit has a control power of 24 VDC, a DC bus supply of 300 VDC, and weighs 5.5 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MIV0204A-1-B5 inverter unit is produced by Okuma within the MIV Servo Drives series. This module functions as a compact drive interface that converts the supply bus into regulated power for synchronous or induction servomotors in CNC machinery. It connects directly to the machine control and distributes power to both the L and M servo channels, providing coordinated motion for tool turrets, feed axes, or auxiliary spindles in automated production lines. The arrangement allows one compact module to serve paired machine motions that must respond to the same control platform.
Internally the unit supports 2-axis operation, meaning a single housing contains independent L-side and M-side stages that run two motors simultaneously. Its logic circuits draw 24 VDC control power, keeping the signal electronics isolated from the main bus. The converter is fed by a 300 VDC link, and this common DC bus lets multiple inverters share regenerated energy while simplifying cabinet wiring. On the L side, continuous output is 2.0 kW, or 2.67 hp, so medium-frame motors can accelerate without derating. The M side provides 4.0 kW, covering axes or spindle loads that demand higher torque. This layout is useful when one channel drives a feed axis and the other drives a heavier rotary load.
Command processing is carried out by the ICB1 control board, and motion algorithms run on ICB-H for position loop updates compatible with BL Motor and PREX Motor feedback. Separate control hardware and power conversion stages help keep command handling and motor output coordinated inside one enclosure. A slim enclosure only 60 mm wide, 295 mm deep, and 380 mm high makes panel layout straightforward during retrofits. The metallic frame weighs 5.5 kg, which helps keep handling manageable during installation with the M4 screws specified for the XT2 terminal strip. As an inverter unit, its DC bus interface forwards regenerated energy to upstream supplies, reducing heat in the cabinet. The second-generation design also standardizes diagnostics across the MIV Servo Drives series, so status reporting remains consistent with related modules in the same platform.
Frequently Asked Questions about MIV0204A-1-B5:
Q: What is the axis configuration for the Okuma MIV0204A-1-B5 servo drive?
A: The MIV0204A-1-B5 is designed to handle two independent axes for multi-axis motion control.
Q: What is the DC bus supply voltage requirement for the MIV0204A-1-B5 unit?
A: This drive operates with a DC bus supply voltage of 300 VDC.
Q: What control power voltage does the MIV0204A-1-B5 require?
A: The control power input specified for the MIV0204A-1-B5 is 24 VDC.
Q: Which motor types are compatible with the MIV0204A-1-B5 inverter unit?
A: The drive supports both BL Motor and PREX Motor types for flexible operation.
Q: What is the maximum L side capacity of the MIV0204A-1-B5 inverter drive?
A: The left side (L side) of the drive supports a maximum capacity of 2.67 hp or 2.0 kW.
