Product Description:

The E5409-183-349 absolute encoder is produced by Okuma within the Absolute Encoders series. This feedback device is intended for CNC machining centers and other automated assemblies that require precise, nonvolatile axis referencing after power loss. By reporting an unambiguous digital position, the unit allows the machine controller to resume motion without homing sequences, which shortens startup time and helps avoid cumulative positioning error in multi-axis operation. That behavior is useful on equipment where repeatable position recovery is needed after interruptions or controlled shutdowns.

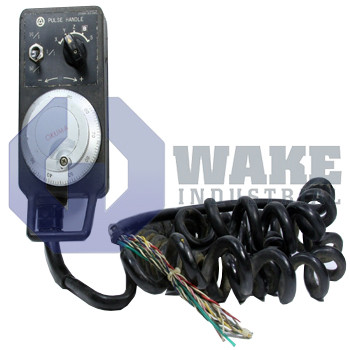

It is wired to five control loops labeled X, Y, Z, 4, 5, so the interface can support three linear axes and two auxiliary channels from one control point. A coiled output cable allows the harness to extend and retract with movement while reducing strain at the termination point. The front dial is graduated from 0-100, making incremental jog entries easy to read during axis adjustment. Adjacent + / - direction marks show the selected jogging direction clearly. The housing measures 25.0 cm in width, which leaves room for the scale, buttons, and connector while still fitting into compact control stations.

The encoder enclosure stands 10.0 cm tall and has a length of 25 cm, giving it a low-profile rectangular shape that fits under monitor shelves or inside shallow cabinet doors. Its mass of 2.0 kg helps limit vibration transfer so the internal sensing components remain stable during rapid axis reversals. Three selector switches provide pulse-multiplier choices of 1, 10, 50, allowing manual feed increments to be changed quickly without altering machine parameters. The low height also helps the unit fit control layouts where panel depth is limited. Switch-based increment selection is useful for backlash checks, setup moves, and other controlled positioning tasks.
