Product Description

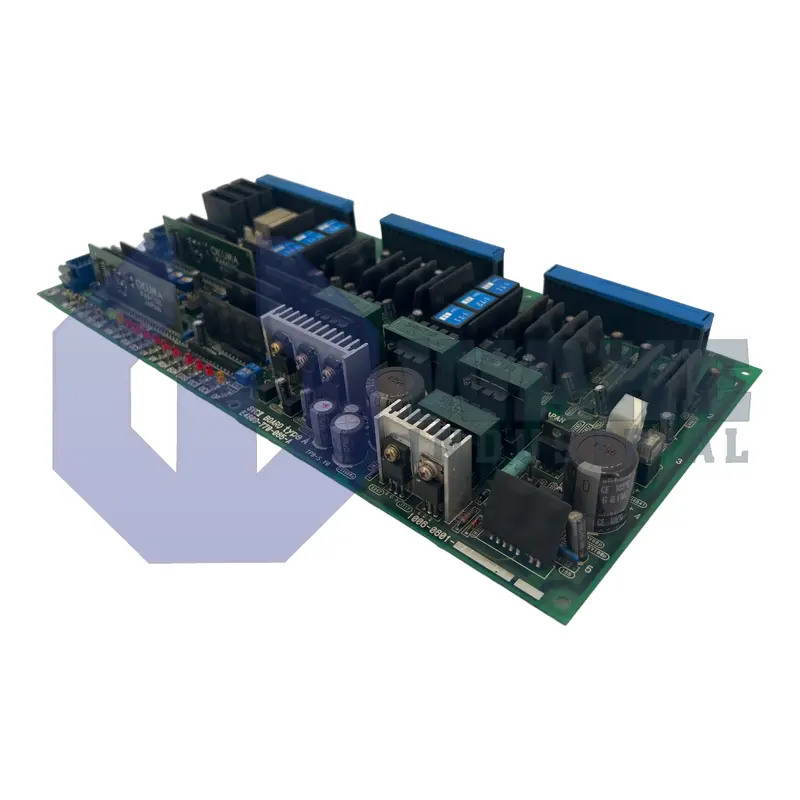

E4809-770-065-A is an optimum performance 3-axis command-type, servo drive control board. The rooted CPU of E4809-770-065-A performs the motion command transmitted from a host computer through a 2k bytes FIFO. It also transferred the status and position to the host-computer through 2K bytes FIFO. This high buffer offers time buffering, and it's ideal for windows OS (operating systems). The E4809-770-065-A provides DOS, Window NT driver and Windows 95.

The E4809-770-065-A comes with various features that make it the best in the market. This includes eight digital input and seven digital outputs, 2500Vrms optical couple, can sense the hardware failure, direction, and a 3-axis V-command servo board. It also comes with command-type, comprising of 42 commands.

The board is designed with a software DDA that offer clear-cut control and adaptable speed by dividing the command into multiple equal delta commands. It also has a smooth operating mode. For effortlessly developing your system, the E4809-770-065-A board offers three operating modes such as open loop mode, simulation mode or closed loop mode. In the simulation mode, the E4809-770-065-A board stimulates the motion profile. User motion commands create the profile and transfer the position to the host computer. If you choose to use the open loop mode, you can output a constant voltage to servo driver. When using the closed loop mode, the E4809-770-065-A conducts the PD controller. Additionally, it executes various functions such as pitch error compensation, hardware failure detection, and limit switch auto-protection.

The E4809-770-065-A is a microprocessor grounded, and 3-axis V-command type Servo drives control board that encompasses a 2 K bytes FIFO to get motion command from a host computer.

  • E4809770065A
  • E489-770-065-A

E4809-770-065-A Technical Specifications

Manufacturer: Okuma
Cooling: Natural convection
Product type: Control board
Compatible product: Servo amplifier
Weight: 0.77 kg
Height: 35 mm
Width: 320 mm
Length: 150 mm
Max temperature: 40 °C
Max altitude: 1000 m

Frequently Asked Questions about E4809-770-065-A


Q: What is the recommended ambient temperature range?

A: The recommended ambient temperature range is 0 to 40 degrees Celsius?

Q: What is the permissbile range for ambient humidity?

A: The permissible range for ambient humidity is 30 to 95%.

Q: What is the maximum altitude at which the electrical cabinet can be installed?

A: The electrical cabient can be installed at altitudes reaching 1000 meters.

Q: Should the NC unit be protected from sunlight?

A: The NC unit must be protected from direct sunlight.

Q: What are recommendations regarding shock and vibrations?

A: The electrical control cabinet and panel must be protected from excessive shocks and vibrations.

Internal Product Review

  • ‘‘E4809-770-065-A is a reliable add-on Type A board for Okuma drive units. ’’
