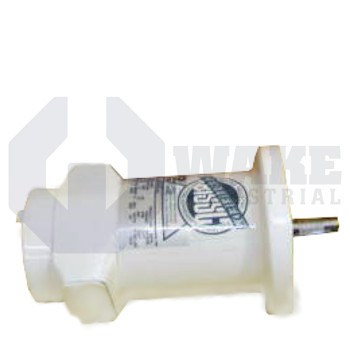

STF5356-3749-61-45BC-CU

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
The STF5356-3749-61-45BC-CU is manufactured by Kollmorgen as part of the STF Washdown Motor- Food Grade Series. It features a continuous current of 7.1 A and a continuous torque of 54.0 lb-in. As well as a peak current of 70.0 A and a torque constant of 7.90 lb-in/A. Certified by the Bakery Industry Sanitation Standards Committee and contains a 17550 RPM.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

STF5356-3749-61-45BC-CU

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: Call for Quote
  • Call for Expedited Shipping and Product Condition Options
The STF5356-3749-61-45BC-CU is manufactured by Kollmorgen as part of the STF Washdown Motor- Food Grade Series. It features a continuous current of 7.1 A and a continuous torque of 54.0 lb-in. As well as a peak current of 70.0 A and a torque constant of 7.90 lb-in/A. Certified by the Bakery Industry Sanitation Standards Committee and contains a 17550 RPM.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a STF5356-3749-61-45BC-CU to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The STF5356-3749-61-45BC-CU is one of the many DC motors from Kollmorgen with permanent magnets. The STF series motor features wash-down duty specifications and has an SCR rating. The device has a power rating of 1.5HP, a peak current rating of 70A and a voltage rating of 180V. It has a compact size in a TENV enclosure. The unit also makes use of a NEMA 145TC frame with a NEMA C face and a non-removable base. The base is welded and made of stainless steel. The BISSC Certified and UL Recognized product hasClass H insulation. The motor comes with a warranty period of one year.

The STF5356-3749-61-45BC-CU primarily features two parts comprising a stator and an armature. The stator is usually in the form of a steel cylinder with the permanent magnets mounted inside it. The environmentally protected product has standard large-size bearings, constant force brush springs with long life and a gasketed conduit box. The device also encompasses a fused and rugged commutator. The brush springs are fitted with two brushes that are field-replaceable. The permanent magnets have an anti-cog property that ensures the smooth running of the motor at 1,750RPM.

The STF5356-3749-61-45BC-CU motor is easily portable and does not need any winding for the magnetic field. The device does not encounter any field circuit copper loss and in turn, has high efficiency. This product has a torque constant of 7.90lb-in/A. The magnets are positioned inside the stator in such a way that their north and south poles alternatively face the armature. The unit has an overall length of 16.30 inches and weighs 65lbs. It is used in several day to day applications such as battery-operated toys and instances where there is a need for a small DC motor. The STF5356-3749-61-45BC-CU DC motor can be shipped to any address worldwide through our efficient shipping partners.

  • STF53563749-6145BC-CU

STF5356-3749-61-45BC-CU Technical Specifications

Continuous Current : 7.1 A
Continuous Torque: 54.0 lb-in
Inductance : 11.20 mH
Inertia: 29.8 lb-in
Peak Current: 70.0 A
Resistance: 1.11
Torque Constant: 7.90 lb-in/A
