SRF3650-4823-84-5-56BC-CU

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The SRF3650-4823-84-5-56BC-CU is manufactured by Kollmorgen as part of the SR and SRF Continuous Duty Motor Series. It features two a voltage of 90V. The SRF3650-4823-84-5-56BC-CU also holds a continuous current of 6.9 A and a continuous torque of 27.0 lb-in. It can hold a peak current of 81.0 A and a torque constant of 4.2 lb-in.

SRF3650-4823-84-5-56BC-CU

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The SRF3650-4823-84-5-56BC-CU is manufactured by Kollmorgen as part of the SR and SRF Continuous Duty Motor Series. It features two a voltage of 90V. The SRF3650-4823-84-5-56BC-CU also holds a continuous current of 6.9 A and a continuous torque of 27.0 lb-in. It can hold a peak current of 81.0 A and a torque constant of 4.2 lb-in.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a SRF3650-4823-84-5-56BC-CU to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

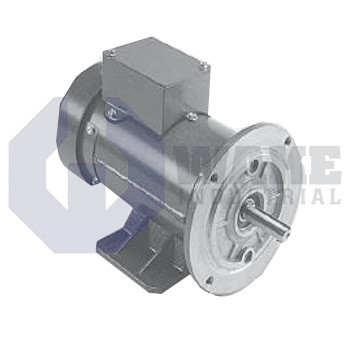

The SRF3650-4823-84-5-56BC-CU is one of the Kollmorgen’s Permanent Magnet DC (PMDC) motors designed to provide high-performance motion that can make a machine more reliable and energy-efficient. It can enhance the machine’s operation accuracy and improve operator safety. This motor is available with NEMA standard and will produce a range of linear torque/ speed.

The SRF3650-4823-84-5-56BC-CU PMDC motor features PWM rated, low voltage, explosion-proof, and seal-tight outer frame with NEMA standard 56C. This motor operates on 90 V (3/4 HP) and available with NEMA C face with a removable base. The interplay between the rotor conductors, carrying axial current, and the magnetic flux produced by the permanent magnet, results in the generation of the torque. The pick current generated by the motor is 81 A and the continuous torque is 27 lbf-in. The length of the device is 13.25 inch and the weight is 30 lbs. The motor has a resistance of 0.7 Ω and can produce 1750 RPM.

The SRF3650-4823-84-5-56BC-CU PMDC motor offers dynamically balanced armatures and large sealed non-contact ball bearings to ensure a smooth performance. The constant force brush springs with field-replaceable brushes ensure a longer life span of the motor. The specific brush replacement code for this motor is YP00565 and the minimum order quantity is 2 per motor.

The SRF3650-4823-84-5-56BC-CU PMDC motor is the best solution to motion control and power transmission applications where compact size, different power sources, wide operating speed range, and the safety considerations of low voltage are important. This PMDC motor is useful in a range of applications, from battery-powered devices like power tools and toys to conveyors and door openers, washers, wipers, X-ray machines, and welding or pumping equipment.

  • SRF-3650-4823-84-5-56BC-CU
  • SRF3650482384556-BCCU

SRF3650-4823-84-5-56BC-CU Technical Specifications

Continuous Current: 6.9 A
Continuous Torque: 27.0 lb-in
Inductance: 3.7 mH
Peak Current: 81.0 A
Resistance: 0.7 ohms
Torque Constant: 4.2 lb-in
Voltage: 90V
