The SR3642-4822-7-56BC-CU is manufactured by Kollmorgen as part of the SR and SRF Continuous Duty Motor Series. It features two a voltage of 90V. The SR3642-4822-7-56BC-CU also holds a continuous current of 4.7 A and a continuous torque of 18.0 lb-in. It can hold a peak current of 74.0 A and a torque constant of 4.2 lb-in.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

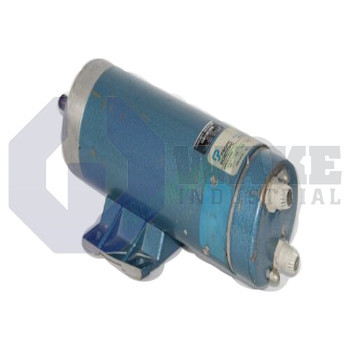

Designed to work with SCR type controllers the SR3642-4822-7-56BC-CU is a 90V PMDC motor from KOLLMORGEN. This motor is designed for applications where continuous motion is required. The shaft of the motor is supported by two, high-grade ball bearings. In this motor, the magnetic field is created and maintained through permanent magnets. The windings of this motor are protected with H class insulation. You can safely deploy this motor for continuous operation in environments where the ambient temperature remains within a range of -20 to 40 degrees C. the SR3642-4822-7-56BC-CU can be operated in temperatures beyond 40 degrees centigrade provided that the mode of operation is cyclic. For applications where speed monitoring is required, you can acquire a tachometer adapter kit separately. The motor`s speed feedback from a tachometer adapter kit can be routed to your motion control system.
This model is offered with a NEMA 56C frame and a closed ventilated enclosure without a shaft-mount fan. However, the design characteristics of the motor allow it to continues operation without overheating provided that the operating temperatures remain within the vendor-defined range. This 1/2 horsepower motor draws around 4.7 amperes of current from 90 VDC sources while rotating at its full speed.
The SR3642-4822-7-56BC-CU is rated to produce 18.0 lbs.-in continuous torque and requires a peak current of 74 amperes. The resistance of its armature windings is 0.9 ohms whereas its motor`s rated inductance is 3.8 mH. This compact PMDC motor weighs around 27 lbs. and its length is 12.10 inches. The spring-loaded brushes of this motor can easily be accessed for inspection and can be replaced in a short time. Being a non-ventilated motor, the SR3642-4822-7-56BC-CU is capable of resisting dirt and moisture.
