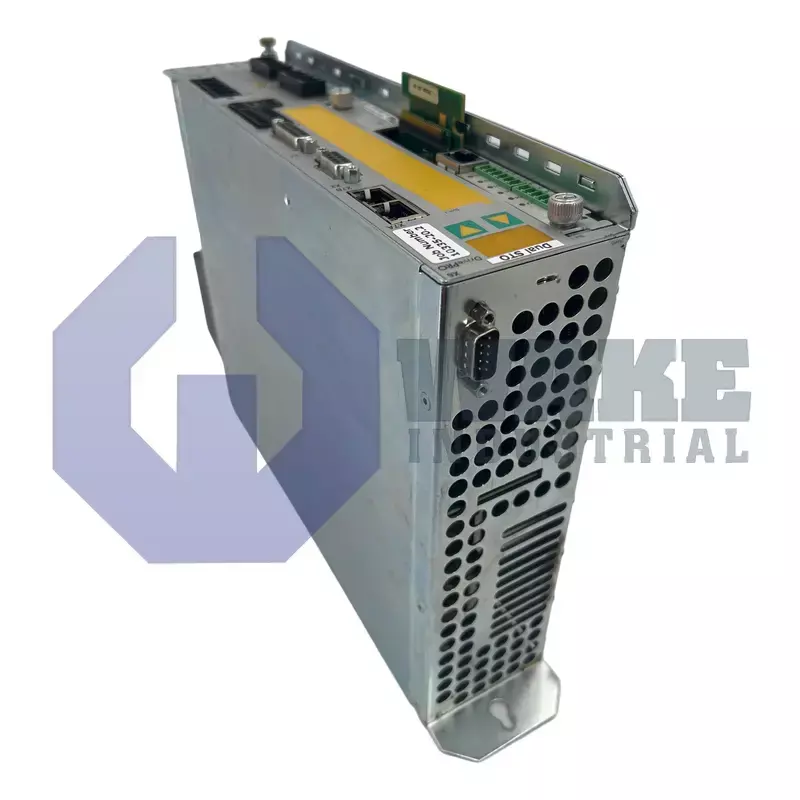

The S71202-NANANA-NA-024 is a servo drive manufactured by Kollmorgen and is part of the S700 Servo Drives series. It features a maximum DC bus voltage of 900 VDC, a peak output current of 24 Arms, and a rated current of 12 Arms. The drive measures 345 mm in height, 70 mm in width, 243 mm in depth, and weighs 4.4 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The S71202-NANANA-NA-024 is a Kollmorgen drive in the S700 Servo Drives series. As a servo drive, it supplies regulated current and voltage to synchronous or induction motors so that industrial robots, packaging machines, and material-handling axes can follow precise motion profiles. EtherCAT and CANopen interfaces are integrated on the base hardware, allowing the unit to exchange cyclic data with a PLC without extra communication modules, which simplifies panel design and supports straightforward setup.
The enclosure stands 345 mm high, spans 70 mm in width, and reaches a depth of 243 mm. These compact proportions support high-density cabinet layouts. Total mass is only 4.4 kg, which keeps handling requirements low during installation. The drive has EtherCAT&CANopen onboard, because no expansion card slot is fitted. Standard-grade printed circuit boards are used, and the permitted switch-on and switch-off frequency is 30 cycles per hour, which helps with contactor sizing and machine duty planning. Dual-channel Safe Torque Off removes drive energy during an emergency stop while retaining encoder feedback for position monitoring.
The drive accepts a three-phase AC input from 208 to 480 V and rectifies it to a DC link that can rise to 900 VDC. Continuous motor power is delivered with a current of 12 Arms, while momentary overloads are handled at 24 Arms for up to 2 seconds. The output stage switches at 8 kHz to minimize motor ripple, and the installed 33 Ω brake resistor absorbs 100 W of regenerated energy; if more dissipation is required, an external resistor can handle 1.5 kW. Maximum apparent power drawn from the mains is 9 kVA, so supply conductors and protection devices can be rated accordingly. Peak current events are limited to protect the semiconductors.
Frequently Asked Questions about S71202-NANANA-NA-024:
Q: What is the maximum output power provided by the S71202-NANANA-NA-024 servo drive?
A: The S71202-NANANA-NA-024 servo drive delivers a maximum continuous output power of 9 kVA.
Q: What type of input power source does the S71202-NANANA-NA-024 require?
A: This Kollmorgen servo drive supports a three-phase AC input power source.
Q: Which communication interfaces are included on the S71202-NANANA-NA-024 servo drive?
A: The S71202-NANANA-NA-024 has EtherCAT and CANopen communication onboard without any expansion card installed.
Q: What is the peak output current capability of the S71202-NANANA-NA-024?
A: It features a peak output current of 24 Arms, suitable for demanding applications that need brief current surges.
Q: What kind of safety functionality does the S71202-NANANA-NA-024 provide?
A: The S71202-NANANA-NA-024 is equipped with dual channel Safe Torque Off (STO) functionality for enhanced safety integration.
