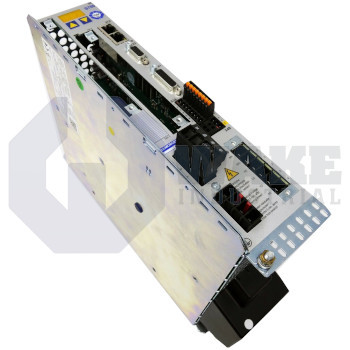

S70602-PBNANA

  • Rated 4.5 (21 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
The S70602-PBNANA is manufactured by Kollmorgen as part of their S700 Servo Drive Series. These drives feature a Rated line power for S1 operation of 4.5 kVA and a Peak output current of 18 A RMS. Alongside of a Voltage rating of 208-480 V and a Maximum DC bus link voltage of 900 V.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock! S70602-PBNANA

S70602-PBNANA

  • Rated 4.5 (21 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options
The S70602-PBNANA is manufactured by Kollmorgen as part of their S700 Servo Drive Series. These drives feature a Rated line power for S1 operation of 4.5 kVA and a Peak output current of 18 A RMS. Alongside of a Voltage rating of 208-480 V and a Maximum DC bus link voltage of 900 V.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a S70602-PBNANA to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen is a leading producer of motion control devices for the automation industry. The company offers a wide collection of products such as motion controllers, electric drives, linear actuators and AGV technology for OEMs, having achieved a good role for its customers. The S70602-PBNANA from Kollmorgen is classified among the S700 line of servo-drives for automation. The device can be supplied with 208-480 triphase AC voltage at a frequency of 50/60 Hz.

The servodrive may be commanded by an external PLC using the EtherCAT or CANopen protocol communication integrated interface or using the Profibus one placed on the first extension card slot of the device. The S70602-PBNANA is able to provide the connected motor an RMS current of 6000 mA and can maintain a limit current of 18000 milliampere for a maximum time of 5 seconds. The setup of the S70602-PBNANA drive can be deployed to the servodrive via the DRIVEGUI setup software attaching a common Personal Computer to the system via its built-in RS-232 socket (X8).

The servo drive offers a single-channel certified safety STO (Safe Torque Off) function that allows the subsystems (servo amplifiers) to reach the following certifications: Performance Level CAT 3, according to ISO 13849-1 and SIL CL 2 (IEC 62061). The module has a set of integrated Input/Output connectors, such as two analog inputs, two programmable digital I/Os (both directions) and four programmable digital inputs, that can be used in order to fit the user's needs. The S70602-PBNANA permits the usage many motor feedback technologies such as incremental encoders, sine encoders with BiSS, resolvers and sine 5V encoders through its built-in port. The temperature in the surroundings of the device must be maintained between 0 and 45 degrees Celsius if the equipment is in working conditions and shall be maintained in the following range: -25… 55 degrees Celsius if the S70602-PBNANA is stored.

  • S-70602-PBNANA
  • S-70602PBNANA

S70602-PBNANA Technical Specifications

Maximum DC bus link voltage: 900 V
Storage and Transportation Temperature: (-25 to +55) degree centigrade
Peak Output Current: 18 A rms
Rated Output Current at 3 x 208 V: 6 A rms
Rated Line Power for S1 Operation: 4.5 kVA
Voltage Rating: 208 - 480 V
Thermal Dissipation at Rated Current: 100 W
Thermal Dissipation, Output Stage Disabled: 20 W max
Analog Inputs: 2
Programmable Digital Inputs: 4

Frequently Asked Questions about S70602-PBNANA


Q: How can the S70602-PBNANA servo drive be commanded externally?

A: The S70602-PBNANA can be controlled by an external PLC using either the EtherCAT, CANopen protocol communication integrated interface, or the Profibus interface found on the first extension card slot.

Q: What is the RMS current and limit current the S70602-PBNANA can provide?

A: The S70602-PBNANA can provide an RMS current of 6000 mA and has a limit current of 18000 mA, maintainable for up to 5 seconds.

Q: How can users deploy the setup of the S70602-PBNANA drive?

A: Setup can be deployed using the DRIVEGUI software by connecting a personal computer to the system via the built-in RS-232 socket (X8).

Q: Which safety certifications does the S70602-PBNANA's STO function support?

A: The STO function offers a single-channel certified safety and helps the drive achieve Performance Level CAT 3 (ISO 13849-1) and SIL CL 2 (IEC 62061) certifications.

Q: What motor feedback technologies does the S70602-PBNANA support?

A: It supports incremental encoders, sine encoders with BiSS, resolvers, and sine 5V encoders through its built-in port.

Internal Product Review

  • ‘‘The S70602-PBNANA stands out with versatile protocol integration, efficient current handling, and robust safety certifications. Its compatibility with various feedback technologies enhances its adaptability in diverse applications.’’
