Product Description:

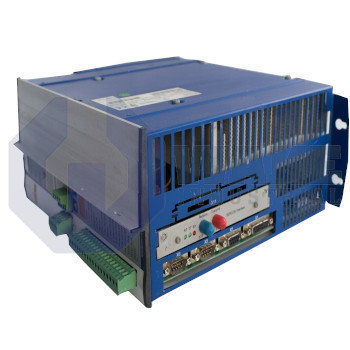

The S62001-SE is a Kollmorgen servo drive positioned in the S600 Servo Drives series. As a standalone S600 Servo Drive, it forms the link between a motion controller and a synchronous or induction motor, supplying regulated current and monitoring feedback so that industrial axes follow programmed speed, torque, or position commands.

This drive operates from a three-phase input range of 230...480V and draws a continuous output of 20A rms, while short bursts can reach 40 Arms to accelerate large inertial loads. A rated installed load of 14 kVA identifies the upstream protective gear and cabling size. The housing carries an IP20 protection rating, suitable for mounting inside a closed control cabinet where finger-safe access is still required. Auxiliary electronics are powered from 24 VDC, and the AS electrical option provides additional monitoring functions. Motion commands and status data move over a plug-in SERCOS expansion module that fits the backplane. Thermal behavior is defined by 200 W of dissipation at rated current and an internal brake power of 200 W that routes deceleration energy into the built-in 33 Ω resistor. A quiescent dissipation of 15 W applies when the output stage is disabled, and the residual voltage drop of 5 V helps estimate cable losses.

The mechanical envelope is compact: width 120 mm, height 275 mm, and a depth of 265 mm. Total mass is 7.5 kg, which eases panel installation without extra supports. The integral brake resistor mentioned above is rated at 33 Ω and removes moderate regenerative energy without an external load bank. Motor matching is flexible because the permissible load inductance spans 2 mH to a ceiling of 12 mH. These values, together with a minimum line impedance implied by the ratings, ensure stable current loops and prevent over-voltage events during rapid speed changes.
