Product Description:

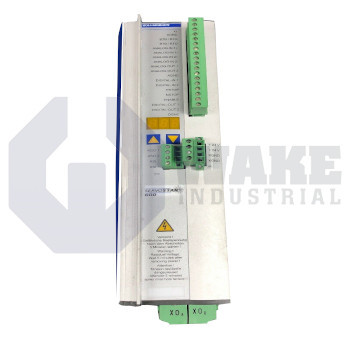

The S61001-550 is a Kollmorgen servo amplifier in the S600 Servo Drives series. It is used in industrial automation to regulate torque and speed of synchronous or induction motors. It converts line power into controlled three-phase output for coordinated motor operation. This operating approach allows the amplifier to support both speed-controlled and torque-controlled applications.

The drive delivers a continuous phase current of 10 A rms, and its power stage dissipates 90 W when that rating is reached. Control electronics tie to analog ground through an input impedance of 20 kOhm, which helps isolate external reference sources from internal circuitry. Motor windings must present at least 4 mH and no more than 25 mH of inductance so that the current regulators remain stable. The output current form factor is held to 1.01, indicating a nearly sinusoidal waveform that helps minimize additional heating. Brake control is integrated, and the Btb relay supports contact logic for system signaling. Common-mode voltage is limited to 10 V, and the residual voltage drop across the output stage is 5 V, which helps protect motor insulation. The product includes the selectable AS electrical option for extended I/O.

Thermal idle losses are restricted to 15 W, reducing cabinet heat when motors are at rest. Connected equipment may draw as much as 7 kVA from the mains, and that load can be supplied from three-phase lines ranging between 230 to 480 V. Command accuracy is aided by a setpoint converter that resolves motion targets at 14-bit/12-bit, supporting precise positioning routines. The analog ground to chassis ground path uses high impedance, which helps keep leakage currents low under fault conditions. With the AS option present, dedicated terminals forward brake power while the Btb relay provides status feedback to upstream safety circuits.
