Product Description:

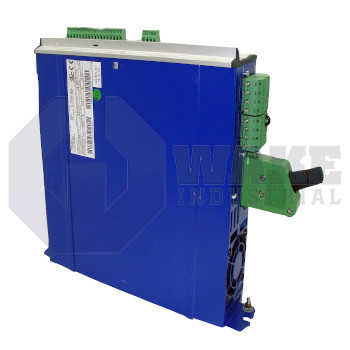

The S61000-SE is a servo amplifier manufactured by Kollmorgen within the S600 Servo Drives series. As a compact AC drive, it interfaces between a motion controller and a three-phase servo motor. It supplies regulated current and monitors feedback to maintain precise torque and speed in automated machinery such as assembly cells, indexing tables, and light-duty conveyor axes. Because it works between the controller and the motor, it supports stable axis response during acceleration, steady running, and speed changes.

The drive can deliver a continuous output of 10 A rms, which is the maximum steady-state motor current the connected axis may draw. When fully loaded at that current, the electronics dissipate 90 W, so cabinet ventilation must remove the resulting heat. The housing has an IP20 rating, which means it is finger-safe but not protected against water jets. With a front width of 70 mm, the unit occupies little rail space in an enclosed panel. On the motor side, the permissible inductance extends up to 25 mH, allowing compatible operation with motors and cable lengths that stay within that limit. A 3.15 AT auxiliary supply fuse protects the control circuitry, while quiescent operation consumes 15 W and the internal power stage has a residual voltage drop of 5 V under load.

For fieldbus integration, an optional SERCOS expansion module sets the telegram structure, supports controller addresses up to 63, and transmits at 16 Mbaud for deterministic traffic. At that data rate, the link can exchange motion data quickly for synchronized control tasks. Motor selection must also observe the lower inductance limit of 4 mH to reduce the risk of overcurrent spikes. The output current form factor of 1.01 indicates nearly sinusoidal conduction. The installed load is 7 kVA, and the phase input can range from 230...480 V to match common plant voltages. This input range covers several common industrial supply levels.
