Product Description:

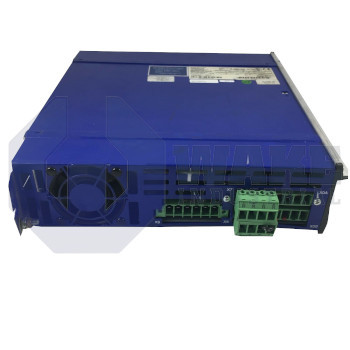

The S610-3000-NA is a servo drive produced by Kollmorgen within the S600 Servo Drives series. It receives control references from a motion controller. This arrangement lets the drive respond quickly to changing load demands during coordinated machine motion. It modulates power devices so that industrial motors follow commanded speed or torque profiles in automated packaging, printing, and assembly machines.

The drive’s analog command channel presents 20 kΩ of input resistance, converts signals with a resolution of 1.25 mV, and refreshes every 62.5 µs. This combination allows precise velocity loops even when low-level sensors are used. Logic and relay circuits are energized from an auxiliary bus of 24 VDC, isolating them from the main power stage. During continuous operation the inverter supplies 10 A rms to the motor, while overload events can be accommodated with a peak capability of 30 A rms (2 s). The output current form factor of 1.01 shows the waveform is nearly sinusoidal, reducing additional motor heating. Stable current regulation is maintained when the connected winding inductance stays between 4 mH and 24 mH. A residual voltage drop of 5 V appears across the half-bridge transistors and must be considered when sizing low-speed torque margins.

At rated current the unit dissipates 90 W. When idle, it falls to a quiescent value of 15 W, which supports cabinet temperature management during standby periods. Line components must be sized for a rated installed load of 7 kVA. The enclosure is classified as IP20, so it requires mounting inside a protected cabinet, and its airborne noise level of 45 dB(A) allows use near surrounding equipment without additional acoustic treatment. The stated inductance range, current form factor, and heat loss figures support motor selection and ventilation planning.
