Product Description:

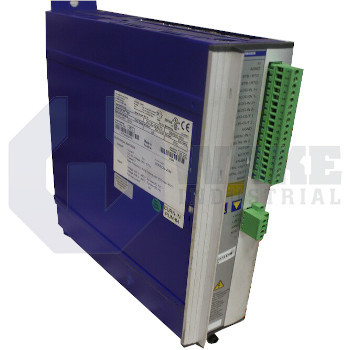

The S60300-550 is a digital servo drive manufactured by Kollmorgen as part of the S600 Servo Drives series. It is intended to close the current, velocity, and position loops of brushless servomotors, replacing older analog amplifiers with a compact, microprocessor-based module. In factory automation cells, the device delivers commanded torque, maintains precise speeds, and executes point-to-point moves so that packaging, pick-and-place, and material-handling axes can meet strict cycle-time requirements.

Cycle times inside the controller are short: the current regulator updates every 62.5 µs, while the position loop completes in 250 µs, giving the drive bandwidth for fast settling. Command signals enter through a differential analog port that presents 20 kΩ of input resistance, and the converter step is 1.25 mV, allowing fine adjustment of velocity or torque references. Continuous phase output is limited to 3 A rms, and the control loop maintains an output current form factor of 1.01 to minimize motor heating. The logic section is maintained by a 24 VDC auxiliary supply so parameter memory and fieldbus supervision remain active when mains power is isolated. The power stage remains stable with load inductances down to 12 mH, helping prevent overcurrent events in low-reactance motors, and quiescent internal loss is held to 15 W when the axis is idle.

During continuous S1 duty, the cabinet must accommodate 2 kVA of apparent power, part of which becomes 40 W of thermal loss at rated current. Regenerative energy is routed to a built-in 66 Ω resistor sized for 80 W of continuous dissipation, eliminating the need for external brake modules. For higher-reactance windings, the drive tolerates a maximum of 75 mH, ensuring stable current control over long motor cables. The allowable mains range of 230 to 480 V supports operation on both low- and high-voltage mains systems, and a residual voltage of 5 V on the output terminals accelerates bus discharge after an emergency stop.
