S60300

Product Description:

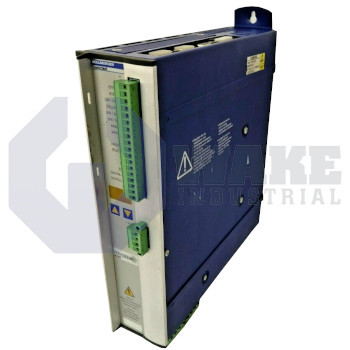

The S60300 is a Kollmorgen digital servo amplifier. Its rated output is 3 Amps and the peak output is 9 Amps. The input rating is 230 to 480 Volts AC (three-phase, 50 Hertz) and 208 to 480 Volts AC (three-phase, 60 Hertz). The rated load for S1 operation is 2 kVA. The rated DC bus link voltage range is 290 to 675 Volts. The clock frequency of the output stage is 8 kilohertz. The overvoltage protection threshold is 450 to 900 Volts. The maximum load inductance is 75 millihenry and the minimum load inductance is 12 millihenry. At rated data and minimum load inductance, the forma factor of the output current is 0.01. Bandwidth of the subordinate current controller is greater than 1.2 kilohertz. The residual voltage drop at rated current is 5 Volts.

The quiescent dissipation with output stage disable is 15 Watts. Excluding brake dissipation, the heat dissipation of the drive is 40 Watts at rated current. Weight of the servo amplifier unit is 4 kilograms and its dimensions are 275 x 70 x 265 millimeters. The amplifier contains ESD sensitive components that can get damaged by improper handling. Personnel handling the unit should discharge themselves and avoid contact with highly insulating materials. The servo amplifier must be placed on a conductive surface. Kollmorgen recommends 0 to 45 degrees Celsius ambient temperature for rated output. The maximum humidity for operation is 85%. The site altitude can go up to 1000 meters without restriction. Between 1000 and 2500 meters, output of the S60300 derates at a rate of 1.5% per 100 meters. The IP20 rated servo amplifier is designed for vertical mounting. A built-in fan provides forced air cooling.
