The Kollmorgen S60100-PB is part of the S600 Servo Drives series and supports a voltage range of 230 to 480V with a rated installed load of 1 kVA. This servo drive features a PROFIBUS expansion module with two 9-pin Sub-D ports and a maximum baud rate of 12 MBaud. It has dimensions of 275 mm in height, 70 mm in width, and 265 mm in depth, with a current rating of 1A rms and auxiliary supply voltage of 24 VDC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

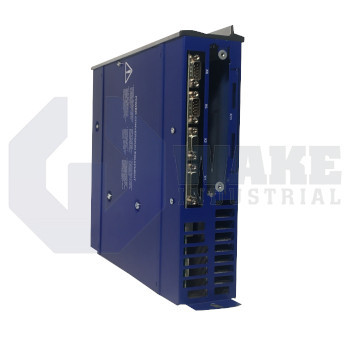

The S60100-PB servo drive is produced by Kollmorgen and belongs to the S600 Servo Drives series. It mounts on a DIN rail or panel and conditions incoming three-phase power so that commanded torque, velocity, and position profiles can be executed reliably. Acting as the link between a motion controller and a rotating servo motor, the unit supervises overcurrent, DC-bus, and thermal limits while delivering precise phase currents needed for industrial packaging, pick-and-place, and material-handling equipment. Through its fieldbus slot, the device integrates easily with PLCs in distributed automation architectures and coordinated multi-axis systems.
The power stage accepts three-phase mains anywhere between 230 to 480 V, letting one drive model cover low- and medium-voltage plants. Under continuous operation, the output section is rated for 1 A rms, and the apparent power capability reaches 1 kVA, so servo motors up to roughly one kilowatt can be driven without derating. Kollmorgen specifies a permissible motor inductance window from 25 mH to 150 mH; staying inside this range keeps current ripple within the current-mode regulator's stability limits and helps avoid excessive switching losses. This inductance range suits many feedback-controlled servomotors used on precision axes.
Control electronics and the brake relay are energized from an auxiliary bus at 24 VDC, keeping diagnostics active during mains removal. At full output, the heat sink must dissipate 30 W, an amount that can usually be removed by natural convection inside a standard enclosure. The PROFIBUS expansion card provides deterministic network access; the drive has 2 ports with 9-pin Sub-D connectors and supports telegram rates up to 12 MBaud, allowing daisy-chained wiring without additional hubs. A footprint of 70 mm in width, 265 mm in depth, and 275 mm in height facilitates side-by-side installation for multi-axis systems in compact cabinets.
