Product Description:

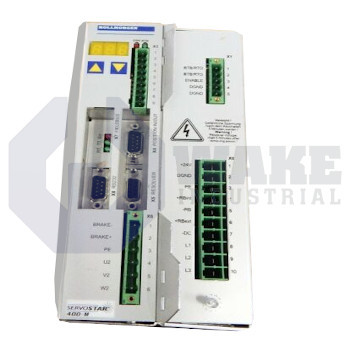

The S403M-SE is a single-axis servo drive produced by Kollmorgen as part of the S400 Servo Drives series. The unit interfaces with permanent-magnet synchronous or asynchronous motors and regulates speed, torque, and position in automated machinery such as pick-and-place gantries and packaging lines. By integrating power electronics, signal processing, and network communication inside one enclosure, the drive provides the closed-loop actuation required for precise motion sequences across industrial automation cells.

An analog command channel is converted at a resolution of 14-bit, giving the controller fine incremental steps for velocity or torque setpoints. The internal digital host executes motion routines at a clock of 8 kHz, while the current loop is refreshed every 62.5 µs. This short cycle limits current ripple and improves dynamic response. When connected to a bus, telegrams are exchanged over the SERCOS fiber-optic fieldbus to synchronize axes across the cell. The power section can handle a maximum installed load of 7 kVA. During acceleration events, the inverter supplies a peak output of 9 A rms, while continuous production is maintained at a rated current of 3 A rms. Dissipation at this continuous level is 35 W, so cabinet airflow must be sized accordingly.

The open-style housing carries a protection class of IP20, so it must be mounted inside a switch cabinet kept within pollution level 2 conditions. With a width of 100 mm, a depth of 240 mm, and a height of 230 mm, it fits tightly spaced rack systems, and vibration tolerance follows class 3M1 for standard industrial floors. Idle electronics draw only 12 W, minimizing standby heat during low-demand operation. The total shipping mass is 3 kg. The drive is intended for operation in a low-vibration installation environment so internal control performance remains stable during use.
