Product Description:

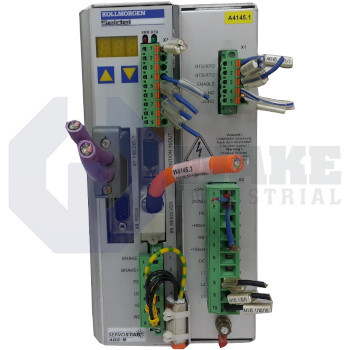

The S403M-PB is a servo drive module produced by Kollmorgen as part of the S400 Servo Drives series. Positioned between the motion controller and the servomotor, this unit modulates current and voltage to execute precise speed and torque commands in industrial automation cells such as packaging, material handling, and electronics assembly. Through its internal power stage and communication bus, the drive forms a closed-loop system with feedback devices, allowing deterministic position updates while occupying minimal panel space.

Internally, the S403M-PB samples motor currents on a control loop that runs at a clock frequency of 8 kHz, which means the current regulators refresh every 125 µs to minimize ripple. The power stage can deliver a continuous line-to-line output of 3 A rms; this value is the maximum sine-wave current the servo can supply without derating. Network commands arrive over the PROFIBUS DP fieldbus, giving the drive access to cyclic setpoints and diagnostic telegrams from PLCs. An enclosure rating of IP20 restricts installation to clean, closed cabinets where fingers are protected and dust ingress is limited. To safeguard downstream equipment, the drive issues a hardware shutdown when DC-bus voltage reaches 450 V, preventing component overstress in regenerative or surge conditions. Four opto-isolated digital inputs and two sourcing outputs complete local I/O for limit switches, drive-ready signals, and fault relays.

Thermal and magnetic limits are further set by a permissible load inductance window from 12 mH to 75 mH; keeping the motor within this range avoids excessive current distortion during fast voltage transitions. When idle, the electronics draw only 12 W of quiescent dissipation, yet under rated load the heat sinks must handle 35 W from conduction losses, so cabinet airflow should be sized accordingly. The housing measures 100 mm wide, 230 mm high, and 240 mm deep and weighs 3 kg, enabling compact integration in multi-axis drive panels.
