Product Description

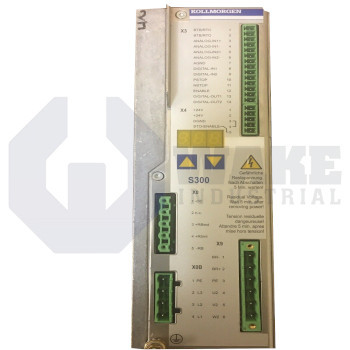

The S30661-NA-105 digital servo amplifier is one of the many S300 series of such amplifiers from Kollmorgen. The device must always be mounted vertically within a site altitude of 1,000 meters above sea level. This product makes use of a built-in fan for cooling. There must be free space above and below the unit for ventilation. It should be assembled close to the power supply on the grounded and conductive mounting plate inside the control cabinet. The amplifier must be installed and wired only when it is not live. This device uses a PLC to monitor its status for acknowledgment of critical situations. The servo amplifier is available with a warranty period of one year.

The setup software can be used to change the settings of the servo amplifier. This product is fitted with an intelligent position controller as well as a pulse direction and RS232 interface. The power section makes use of a B6 bridge rectifier, a soft-start circuit and an integral supply filter. The S30661-NA-105 amplifier is compatible with linear motors, DC motors and high-frequency spindles from the manufacturer. The unit offers very high voltage surge protection. It features state vector modulation for maximum power efficiency. The servo amplifier has a rated input power of 2kVA at 240VAC.

The S30661-NA-105 amplifier supports homing and jogging functionalities. The servo amplifier does not have any factory-installed option card. It has a maximum DC bus link voltage of 450V. The device has a size of 279 x 171 mm (H x D) without connectors. The output stage of the unit has a switching frequency of 8kHz. The analog inputs have a maximum common-mode voltage rating of +/-10V. The enclosure has a protection rating of IP 20 in adherence to IEC 60529 specifications. The S30661-NA-105 amplifier unit can be sent to the address of your choice.
