Product Description:

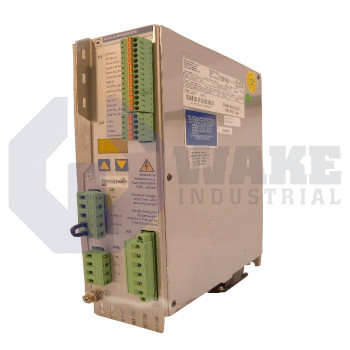

The S30661-NA is a digital servo drive produced by Kollmorgen for the S300 Servo Drives series. The unit operates as a closed-loop power amplifier that supplies regulated current to a synchronous or asynchronous servomotor, enabling controlled torque, speed, and position in automated assembly lines and packaging systems. It is intended for panel mounting inside motion-control cabinets where footprint and thermal performance are constrained. This arrangement supports compact axis control in cabinets that carry several coordinated drive modules. It can be used where multiple servo axes must share limited enclosure space while maintaining responsive current control.

The drive accepts a 110 to 230 V AC supply and rectifies it to a DC link that can rise to 450 VDC. Under continuous duty, it delivers 6 A rms and draws up to 2.4 kVA, while brief overloads are supported with 15 A rms peak current. A switching frequency of 8 kHz on the output stage reduces audible and mechanical ripple. Networked control is available through the onboard CANopen interface, which allows the unit to exchange commands and status data with higher-level motion hardware. Line-to-motor losses are limited by a 4 V residual drop, and regenerated energy is handled by a 66 Ω internal brake resistor. Motors with inductances as low as 2.6 mH can be connected on 230 V systems. Acoustic output remains within 45 dB(A), and up to 30 electrical power cycles per hour are permissible without overstressing the power section.

The integrated STO function removes drive output torque for safe shutdown, and the bus is disconnected when voltage reaches 455 VDC. Slew-rate control limits bus rise to 3.3 kV/µs, and thermal losses are held to 60 W at rated load. The aluminum housing measures 70 mm in width, 171 mm in depth, and 279 mm in height, which supports dense cabinet layouts. Passive convection supports cooling, and the narrow housing leaves room for neighboring modules in multi-axis panels.
