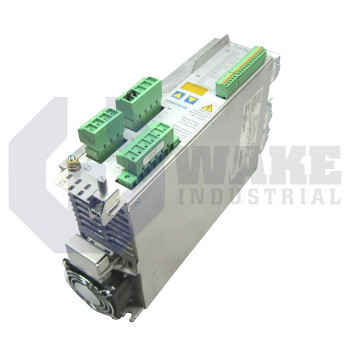

The Kollmorgen S30601-NA is an S300 Servo Drive that operates with an input voltage range of 208 to 480 volts and a rated input power of 5 kVA. It features a CANopen onboard communication interface and provides a peak output current of 12 Arms with a long-term speed regulation of 0.01 percent. The drive supports a PWM switching frequency of 8 kHz and includes STO Safe Torque Off as a safety feature at SIL2 level.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

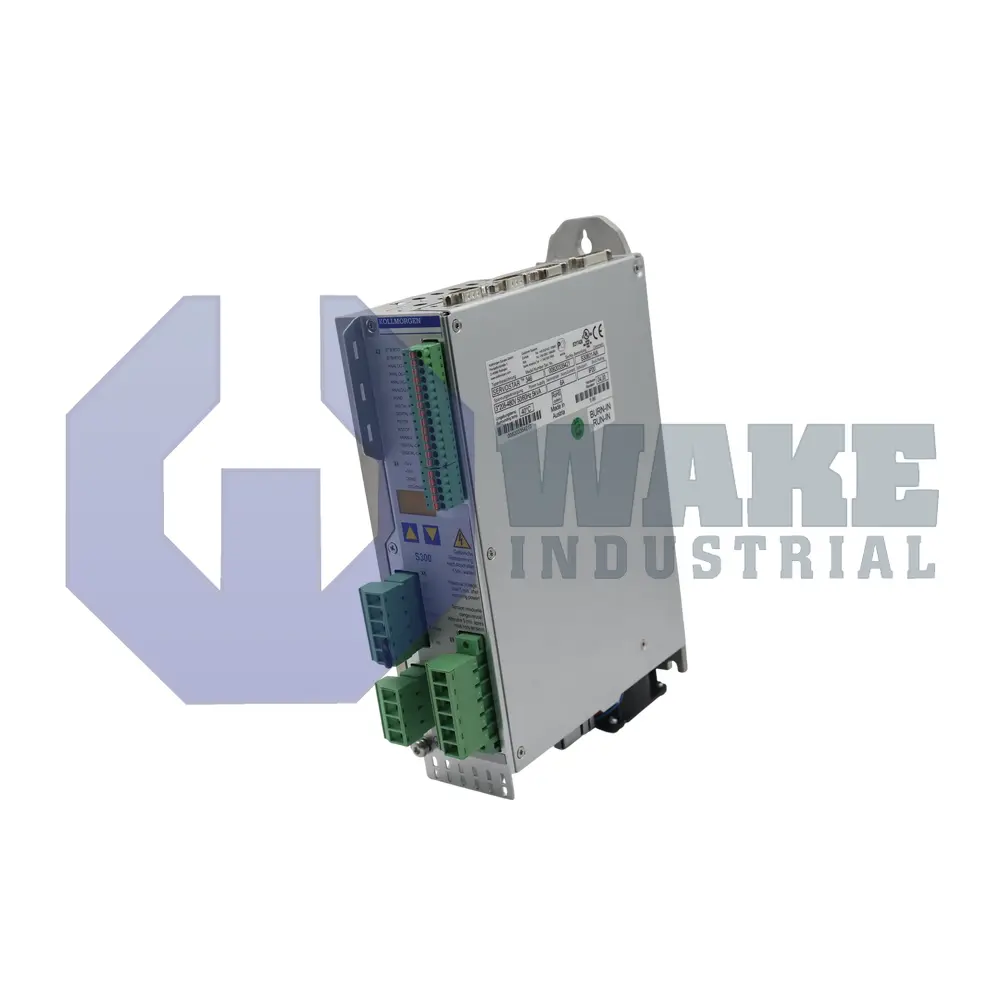

The S30601-NA is a servo drive manufactured by Kollmorgen as part of the S300 Servo Drives series. This drive converts incoming mains power into controlled output for brushless or induction servomotors, allowing closed-loop positioning and velocity control in automated packaging lines, pick-and-place robots, and material-handling stages. It is suited for motion tasks that require repeatable response during frequent starts, stops, and direction changes. The housing is intended for cabinet installation where coordinated axes need compact drive electronics and responsive motor control.
The power section accepts a three-phase supply of 208–480 V and delivers a continuous phase current of 6 A rms, with short-term capability up to 12 A rms for acceleration or load shocks. Internally, the DC link can rise to 900 VDC, so proper bus filtering is required. Current pulses are modulated at 8 kHz; when torque demand drops, the drive can switch to a reduced-current pattern at 16 kHz to cut acoustic noise. An onboard CANopen interface ties the unit to PLC networks, and there is no expansion card slot, which simplifies cabinet wiring. The output current form factor is 1.01, indicating near-sinusoidal motor currents, while the residual voltage drop of 5 V helps maintain regulation accuracy. Nominal input power is 5 kVA, and thermal losses range from 12 W at idle to 90 W at rated output, which helps with panel ventilation planning. Safe Torque Off de-energizes the power stage without external contactors.
Servo loop dynamics include a velocity bandwidth of 400 Hz, enabling stiff speed control when paired with high-resolution feedback. Long-term speed regulation holds to 0.01%, supporting systems that must maintain constant web or spindle speeds over temperature and load shifts. Functional safety is integrated up to SIL2, allowing the drive to meet machine safety requirements without separate relays. This arrangement supports controlled motion in applications that need stable speed behavior and a built-in safety function.
Frequently Asked Questions about S30601-NA:
Q: What communication interface does the S30601-NA support?
A: The S30601-NA servo drive includes an onboard CANopen communication interface for connectivity.
Q: What is the supported input voltage range for the S30601-NA?
A: The S30601-NA is designed for input voltages ranging from 208 to 480 volts.
Q: What safety features are present on the S30601-NA servo drive?
A: This drive features STO (Safe Torque Off) and achieves a safety level of SIL2.
Q: What is the rated input power for the S30601-NA?
A: The S30601-NA provides a rated input power capacity of 5 kVA.
Q: What is the peak output current of the S30601-NA?
A: This drive can deliver a peak output current of 12 Arms.
