Product Description:

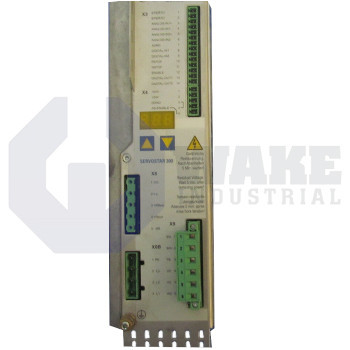

The S30361-EI is an AC servo drive produced by Kollmorgen and assigned to the S300 Servo Drives series. Installed in control cabinets, this drive interfaces between the mains supply and a rotary or linear servomotor, converting line voltage to a modulated DC bus and pulse-width-modulated output for accurate motion control. In industrial automation, it executes real-time commands from a host controller, enforces protection limits, and supports deterministic positioning where repeatability and fast cycle times are important.

The power section accepts a single-phase or three-phase mains range of 110 to 230 V, which it rectifies and buffers on a DC link rated to 450 VDC. Within this range, the drive delivers a continuous phase current of 3 A rms and can process up to 1.1 kVA of apparent power, which indicates the motor capacity it can support. To actuate the windings, the output stage switches at 8 kHz, a carrier frequency that helps limit audible noise while providing smooth torque. Logic functions operate from a 7 mA control input current, while the signal output channel supplies 500 mA for encoder or relay loads. A 4 AT fuse protects the I/O bus, and the hardware trips if the DC link exceeds the 455 VDC overvoltage threshold. Response to network addressing begins within 4 ms, and the startup sequence is completed within 2 ms.

The drive has 14 digital inputs and eight digital outputs for local sequencing, allowing the inputs to accept limit, home, or safety contacts. The integrated STO (Safe Torque Off) circuit removes gate drive on demand, achieving SIL-compliant zero-torque status without external contactors. Mechanical dimensions measure 171 mm deep without connectors, 70 mm wide, and the aluminum housing weighs 2.6 kg, which helps in panel layouts where mass and clearance are limited.
