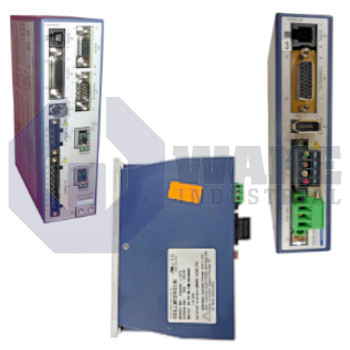

The S20360-SDS drive unit is manufactured by Kollmorgen, provides easy configuration and troubleshooting with the help of LED on the front panel.

S20360-SDS

  • Rated 4.5 (19 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The S20360-SDS drive unit is manufactured by Kollmorgen, provides easy configuration and troubleshooting with the help of LED on the front panel.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The S20360-SDS servo drive by Kollmorgen is a cutting-edge product that combines industry-leading performance with a compact footprint. As a versatile solution, it redefines servo control in applications like semiconductor fabrication, electronic assembly, and medical equipment, delivering unmatched reliability. The S00 series servo drive unit is designed and developed by Kollmorgen for lower power applications. This drive unit is engineered for operation with brushless servo motors by Danaher Motion. It is well-suited for applications such as wood-working equipment, semiconductor fabrication, medical and packaging equipment. It provides torque and velocity control as standard, as well as factory options to support SynqNet motion network. When used with Danaher?s AKM series, this servo drive offers 24-bit feedback and high performance 3-5 kHz current loop bandwidth. The ?03? in the type code ?S20360-SDS? denotes current rating of 3 Arms during continuous operation and 9 Arms at peak operation. It is designed to be operated with 120/240 VAC for all currents. The S20360 servo drive comes without the electrical options. It provides SynqNet option card and comes with Micro-D connectors. The S20360 series servo drive module provides peak current output of 9.0 Arms when operated under ambient temperature range of 0 to +50 degree Celsius. It can achieve peak output power of 3000 VA for 1 second while operating at 240 VAC with a three-phase voltage source or 2,600 VA while operating with a single-phase voltage source. At 120 VA from a single-phase voltage source, this drive unit provides 1,300 VA of peak power output for 1 second. When operating a nominal speed of 3,000 RPM powered by a three-phase or single-phase DC source, this motor delivers continuous shaft power of 750 W in an ambient temperature range of 0 to +30 oC.
  • S20360SDS
  • S20-360SDS
  • S20-360-SDS

S20360-SDS Technical Specifications

Manufacturer: Kollmorgen
Power supply: single/three-phase
Feedback: 24-bit
Protection: over-temperature
Status: LED indicator
Rated current: 3 Arms (continous)
Peak rated current: 9 Arms
Connectors: Micro-D
Operating temperature: 0 to +30 degree Celsius
Voltages: 120/240 V

Frequently Asked Questions about S20360-SDS


Q: What applications is the S20360-SDS servo drive suitable for?

A: The S20360-SDS servo drive is suitable for applications such as wood-working equipment, semiconductor fabrication, medical equipment, and packaging equipment.

Q: What is the rated current for continuous operation?

A: The rated current for continuous operation is 3 Arms. During peak operation, it can handle 9 Arms of current.

Q: Can the S20360-SDS servo drive operate with both 120VAC and 240VAC?

A: Yes, it can operate with 120/240 VAC for all currents.

Q: What is the peak output power of the S20360-SDS servo drive?

A: The peak output power is 3000 VA at 240 VAC three-phase, 2600 VA at 240 VAC single-phase, and 1300 VA at 120 VAC single-phase.

Q: What is the continuous shaft power of the S20360-SDS servo drive?

A: The continuous shaft power is 750 W at 3000 RPM in an ambient temperature range of 0 to +30 degrees Celsius.
