M-803-A-B9-G26-024 Kollmorgen
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
The Kollmorgen M-803-A-B9-G26-024 is part of the M Goldline Servo Motors series and operates at a line voltage of 230 VAC with a rated power of 7900 Watts. It delivers a continuous stall torque of 42 Newton-meters and a peak stall torque of 130.2 Newton-meters. The servo motor has 6 poles and a back EMF constant of 102.3 Vrms per kRPM.
Internal Product Review
The M-803-A-B9-G26-024 is a Kollmorgen M Goldline servo motor that delivers 37.71 N-m rated torque and 7900 W rated power for demanding motion systems. Continuous-duty capability is impressive, with 42 N-m continuous stall torque and 24.9 Arms continuous stall current supporting stable servo performance. A peak stall torque of 130.2 N-m highlights the motor’s strong dynamic reserve.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

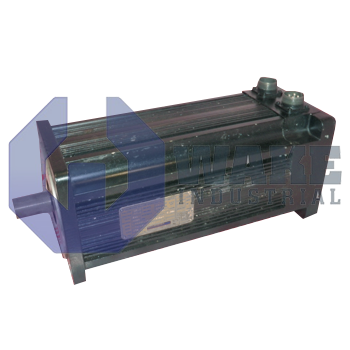

The M-803-A-B9-G26-024 is a brushless servo motor built by Kollmorgen within the M Goldline Servo Motors series. It is intended for closed-loop positioning and velocity control where high continuous torque and dynamic response are required on packaging lines, material-handling axes, and machine tools. By pairing with a digital drive, the unit converts commanded current into shaft torque, allowing an automation controller to achieve precise motion profiles in industrial equipment. Its brushless design also supports repeatable motion during frequent start-stop cycles and changing load conditions.
This model delivers a continuous shaft torque of 42 N-m while drawing a continuous phase current of 24.9 Arms. Those values describe the steady operating load the motor can maintain without overheating. The motor is wound for 230 VAC line operation, and its back electromotive force is 102.3 Vrms/kRPM, so the drive must provide appropriate voltage as speed increases. A torque constant of 1.691 N-m/Arms links commanded current to produced torque, which makes motor response easier to predict during control. Six rotor poles set the electrical relationship between the drive and the motor speed, while the phase inductance and DC resistance affect current ripple, copper losses, and thermal behavior.
During rapid acceleration or shock loading, the motor withstands a peak torque of 130.2 N-m and a momentary current draw of 81 Arms, giving the axis additional force during short-demand events. Rated mechanical output is 7900 W at 37.71 N-m, showing how the motor converts electrical input into rotational power across its working range. The rotor inertia of 0.0352 kg-m² balances responsiveness with stability, which helps the axis settle without becoming overly sensitive to disturbances. Thermal resistance also affects how quickly heat moves from the windings to the frame, and that behavior helps predict temperature rise, support feedback selection, and match the motor to a compatible drive for accurate operation.
