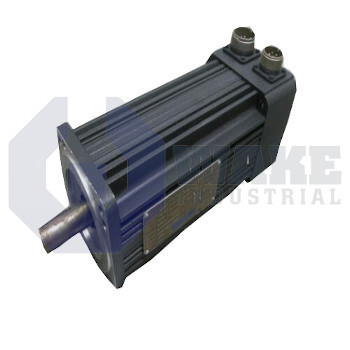

The Kollmorgen M-405-C-A1-E1 is a servo motor from the M Goldline Servo Motors series with a rated power of 5.4 kW and a rated speed of 5000 rpm. It features a continuous torque of 13.1 N-m at 40°C, a peak stall torque of 35.3 N-m, and an IP65 seal rating. The motor follows the metric mounting standard and uses a screw thread connector package with rear shaft extension.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The M-405-C-A1-E1 is a brushless servo motor produced by Kollmorgen. It belongs to the M Goldline Servo Motors series. Designed for closed-loop motion, it provides direct drive for positioning tables, pick-and-place heads, and packaging axes within automated cells, where precise velocity and torque control support repeatable throughput. Its brushless construction also suits applications with frequent acceleration, deceleration, and reversing cycles. This makes it suitable for compact machine axes that need repeatable starts and stops throughout long production runs.
At a winding temperature of 40 °C, the motor delivers a continuous output of 13.1 N·m. It reaches 5.4 kW at a rated speed of 5000 rpm, giving the servo system a high-speed operating range for dynamic motion. Continuous operation draws 19.8 A RMS, and rapid indexing is supported by a peak current of 55.9 A RMS. The phase inductance is 8.4 mH, which influences current rise time and helps smooth inverter ripple. A torque constant of 0.66 N·m/A RMS links commanded current to shaft torque, while the metric mounting interface supports straightforward integration with ISO gearheads. Screw-thread connectors without plugs are used for power and feedback connections, and an adapter plate is included so an external encoder can be installed when position feedback is required.
Transient loads are handled by a stall torque of 35.3 N·m. The regenerative voltage constant is 40.2 V RMS/krpm, which is useful when evaluating returned energy during deceleration. The winding resistance is 0.34 ohms, and the rotor inertia of 44.6 × 10⁻⁴ kg·m² balances responsive acceleration with stable motion under changing loads. That value also influences heating during sustained operation. Sealing to IP65 blocks dust and low-pressure water jets from reaching internal components. A rear shaft extension is present for auxiliary encoders or brakes, and the connector arrangement works with the encoder-ready adapter plate for added feedback hardware.
Frequently Asked Questions about M-405-C-A1-E1:
Q: What is the rated power of the Kollmorgen M-405-C-A1-E1 servo motor?
A: The M-405-C-A1-E1 servo motor has a rated power output of 5.4 kW for sustained operation.
Q: What is the continuous torque of the M-405-C-A1-E1 servo motor at 40°C?
A: This model supports a continuous torque of 13.1 N-m at 40°C, providing steady performance under typical conditions.
Q: What type of connector package does the M-405-C-A1-E1 use?
A: The M-405-C-A1-E1 motor is equipped with a screw thread connector package and does not include plugs.
Q: What is the seal rating of the M-405-C-A1-E1 motor?
A: This servo motor features a seal rated at IP65, protecting it from dust and low-pressure water jets.
Q: Does the M-405-C-A1-E1 servo motor come with an encoder installed?
A: The feedback provision for this model allows for an encoder adapter, but it does not include an encoder.
