Product Description:

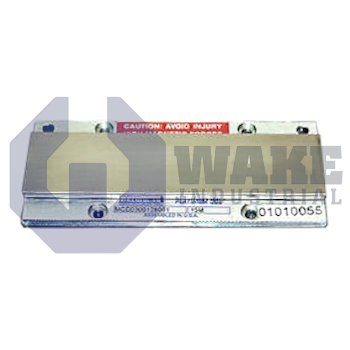

The MCD0750064001 is a coil module used in Kollmorgen’s ICD Ironcore Direct Drives series. It serves as a stationary primary section of an iron-core linear motor. When paired with a magnetic track, it produces controlled linear force that allows machine tools, pick-and-place axes, and gantry stages to position loads with high stiffness and repeatability.

The assembly width is 100.0 mm, so adjacent drive elements or cable carriers can be spaced accurately along the machine frame. A base height of 4.0 mm keeps the coil stack close to the yoke, while the combined base-plus-magnet height reaches 8.25 mm, which sets the working air gap and affects force density. Mounting fasteners sit in counterbored recesses; each recess has a depth of 1.6 mm and a bore diameter of 8.3 mm, allowing the screw heads to sit flush with the top surface and preventing interference with moving secondary surfaces. Two M6 locating pin holes guide the module during assembly, and the 5 mm pins constrain lateral shift so the coil stays centered over the magnet track. Separate through-holes accept M4.7 hardware; their 90.0 mm spacing matches the standard carriage pattern, and the pair of mounting holes secures the unit against vibration.

A removable cover made of stainless steel shields the windings from coolant splash and chips; its thickness of 0.25 mm adds minimal magnetic reluctance while providing abrasion resistance. Overall length is 63.3 mm, so multiple sections can be tiled to match the stroke required by the application, and the total height with the cover installed is 8.50 mm, maintaining a low profile beneath the moving platen. For dynamic weight calculations, the assembly imposes a linear mass of 5.48 kg/m, allowing drive sizing software to predict acceleration, thermal load, and bearing life accurately.
