The Kollmorgen IC11050Q1TSP113 is part of the IC Ironcore Direct Drive Motors series and features a shielded cable with connector. The motor offers a continuous force of 263 Newtons, peak force of 533 Newtons, and uses natural cooling with a maximum coil temperature of 130 degrees Celsius. It has a coil weight of 3.6 kg, a coil width of 85 mm, and is protected by a thermostat for thermal protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

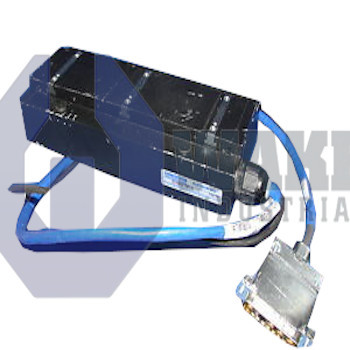

The IC11050Q1TSP113 is a moving-coil assembly within the IC Ironcore Direct Drive Motors series produced by Kollmorgen. Designed for ironcore linear motor stages, the unit slides along a permanent-magnet track to deliver precise linear motion in packaging lines, electronic assembly cells, and material handling stations. By eliminating ball screws or belts, the coil receives phase currents directly from a servo amplifier and converts them into force that positions carriages with sub-millimeter repeatability. This architecture reduces mechanical backlash and supports high dynamic responsiveness demanded by multi-axis automation.
Under continuous operation, the coil generates 263 N of thrust, a level that can sustain steady axis movement without thermal derating. For rapid indexing or overcoming static loads, it can deliver a momentary 533 N of peak force. The electromagnetic circuit responds in 10.3 ms, which is the electrical time constant that sets current rise and therefore how quickly force can be modulated by the drive. A motor constant of 32.0 N/√W links force to RMS power and helps size the amplifier. Heat created in the copper is conducted through the stator laminations with a thermal resistance of 0.99 °C/W. With a coil weight of 3.6 kg and a coil width of 85.0 mm, the moving mass remains low while still spanning the 50 mm magnet way that weighs 7.5 kg per meter. Two mounting holes in the yoke provide rigid attachment to the payload.
Cooling relies on natural convection, so airflow within the machine enclosure must remain unobstructed. The winding insulation allows operation up to 130 °C, and a built-in thermostat opens the power circuit if that temperature is approached. Electrical power and Hall signals reach the coil through a shielded cable with a connector, which helps minimize conducted and radiated noise during high-slew moves. Installation must account for the 2.4 kN magnetic attraction acting between the coil and track, because this preload affects bearing selection and frame stiffness.
Frequently Asked Questions about IC11050Q1TSP113:
Q: What is the continuous force output of the IC11050Q1TSP113 motor?
A: The IC11050Q1TSP113 motor provides a continuous force of 263 N for demanding linear drive applications.
Q: What type of cooling does the IC11050Q1TSP113 use?
A: This model features natural cooling, operating without external cooling equipment.
Q: What is the maximum coil temperature allowed for the IC11050Q1TSP113?
A: The maximum coil temperature for this motor is 130 °C before thermal limits are reached.
Q: What type of cable is provided with the IC11050Q1TSP113 motor?
A: A shielded cable with connector is included with this motor for secure and reliable electrical connections.
Q: What is the peak force capability of the IC11050Q1TSP113?
A: The IC11050Q1TSP113 has a peak force rating of 533 N for short bursts of high-demand operation.
