Product Description:

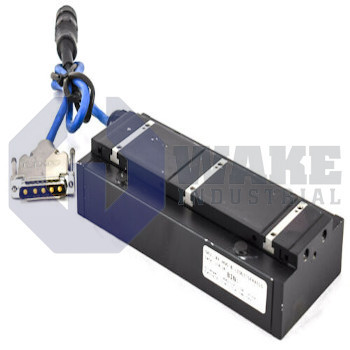

The IC11050Q1TSC4 coil assembly is produced by Kollmorgen within the IC Ironcore Direct Drive Motors series. This component is a linear motor coil section intended to generate controlled thrust directly against a permanent-magnet track, eliminating mechanical transmissions in industrial automation systems such as gantry stages, pick-and-place modules, and precision material-handling axes. By coupling electromagnetic force straight to the load, it supports accurate positioning and high cycle throughput.

At its rated operating temperature, the coil sustains a continuous force of 263 N, allowing machinery to hold or move loads without exceeding thermal limits. For rapid indexing, the design supplies up to 533 N of peak thrust for short intervals, giving headroom for acceleration events. The unit uses non-cooled construction, so thermal energy must be conducted into the mounting surface; the effectiveness of this path is reflected by a 0.99 °C/W thermal resistance value. A coil width of 85.0 mm sets the magnetic gap and determines how closely the forcer can nest between guide rails while still maintaining the flux density needed for performance. Two pre-drilled mounting holes allow repeatable alignment along the axis.

The assembly weighs 3.6 kg, a value that influences the movable mass budget and servo loop tuning. When energized over its magnet track, the coil experiences 2.4 kN of attractive force, so rigid fixtures are required to prevent deflection. The winding insulation is rated for a maximum temperature of 130 °C, offering headroom for sustained duty cycles if heat is properly dissipated. With a calculated maximum acceleration of 17.7 g, the forcer can drive light payloads through short strokes at high speed. Installation is simplified by flying-lead termination and a 1,200 mm lead length.
