The Kollmorgen IC11030A1TSP1 is part of the IC Ironcore Direct Drive Motors series. This motor features a max continuous force of 140 Newtons and a peak force of 369 Newtons. It has a back EMF constant of 29.3 Vpeak per m/s, a max coil temperature of 130 degrees Celsius, and uses natural cooling with thermostat-based thermal protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

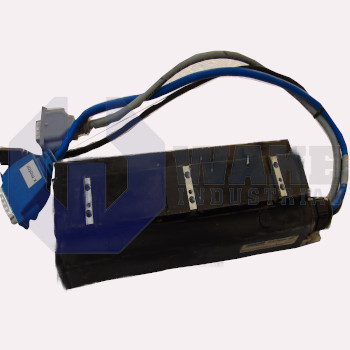

The IC11030A1TSP1 linear motor coil is manufactured by Kollmorgen and belongs to the IC Ironcore Direct Drive Motors series. It is an iron-core, direct-drive component intended to generate linear thrust along a ferromagnetic secondary track. By acting directly on the payload carriage, the unit removes belt, screw, or gear reductions, allowing precise motion control in semiconductor tooling, packaging lines, and general factory automation.
The coil delivers a continuous force of 140 N and can momentarily rise to a peak of 369 N for rapid acceleration events. Each ampere supplied produces proportional thrust because of the force constant of 35.8 N/Arms, while back electromotive force is generated at 29.3 Vpeak/m/s as the mover gains speed. Thermal behavior is influenced by a thermal resistance of 1.64 °C/Watt and an electrical time constant of 9.1 ms during current transients. Natural cooling is the standard mode, so airflow around the assembly must remove waste heat, and a factory-installed thermostat opens the circuit if winding temperatures exceed safe limits.
During steady operation, the coil draws a continuous current of 3.97 Arms, and its copper windings exhibit an inductance of 17.8 mH with a phase-to-phase resistance of 1.95 ohms. These parameters describe the dynamic relationship between the drive amplifier and the motor, which affects how quickly the commanded force can change. A maximum coil temperature of 130 °C is permitted, and the thermostat trips before this limit to help preserve insulation life. The drive electronics must operate from a bus potential no higher than 480 VAC, and they must also counter the 1.4 kN of inherent magnetic attraction between the coil and track. Electrical power is routed through a 400 mm lead with an integral connector, matching the unit’s termination style.
Frequently Asked Questions about IC11030A1TSP1:
Q: What is the max continuous force output of the IC11030A1TSP1 motor?
A: The IC11030A1TSP1 has a maximum continuous force rating of 140 N for sustained operation.
Q: What is the peak force capability of the IC11030A1TSP1 direct drive motor?
A: This model supports a peak force of up to 369 N for short-duration demands.
Q: How is thermal protection implemented for the IC11030A1TSP1 motor?
A: The IC11030A1TSP1 features thermostat-based thermal protection to help prevent overheating.
Q: What type of cooling is used in the IC11030A1TSP1 motor?
A: This motor operates with natural cooling, requiring no external cooling systems.
Q: What is the connector length provided on the IC11030A1TSP1 model?
A: The IC11030A1TSP1 is equipped with a 400 mm connector for its electrical termination.
