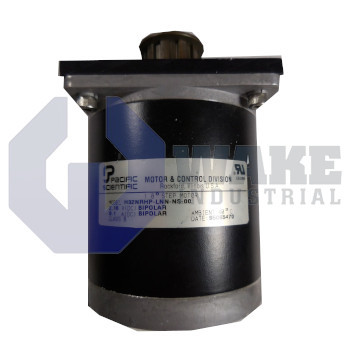

The Kollmorgen H32NRHP-LNN-NS-00 is a stepper motor from the H Hybrid Motors series, featuring a NEMA 34 frame size and standard construction. It provides a holding torque of 3.33 N-m and an axial shaft load of 801 Newtons. The motor operates at a rated current of 8.1 A per phase with 200 steps per revolution and a step angle of 1.8 degrees.
Internal Product Review
The H32NRHP-LNN-NS-00 is a Kollmorgen hybrid motor in a NEMA 34 frame with 3.33 N-m holding torque. A 1.8-degree step angle and winding optimized for maximum torque at high speed make this model a very strong choice for precise, dynamic motion applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The H32NRHP-LNN-NS-00 is a hybrid stepper motor in Kollmorgen’s H Hybrid Motors series. As a two-phase motor, it converts digital pulse commands from an indexer or drive into precise angular motion for open-loop positioning in pick-and-place modules, small conveyors, and metering pumps. Its NEMA mounting interface supports installation in equipment built for the same frame standard, allowing straightforward integration in automated systems. The design is well suited to applications that need repeatable incremental motion without an integrated feedback device.
The motor develops a holding torque of 3.33 N-m while drawing 8.1 A/phase, and it uses four parallel leads in a regular lead-wire connection style. Copper losses are limited by a winding resistance of 0.19 Ω, while a phase inductance of 2.4 mH influences current rise in the winding. Each full step equals 1.8 degrees of rotation, giving 200 steps per revolution with ±1.5% step accuracy for repeatable indexing. Two rotor stacks and a maximum-torque-at-high-speed winding help extend usable speed before pull-out. Thermal energy moves through the lamination body at 2.7 °C/W and into ambient through a standard construction housing with an overall length of 95.5 mm. A 340 Vdc insulation rating, Class B (130 °C) materials, and 100 MΩ insulation resistance protect the coils. The NEMA mounting face, smooth output shaft, and rotor inertia of 0.120 × 10⁻³ kg·m² support rapid start-stop operation.
This frame can carry an axial thrust of 801 N and a radial load of 156 N without exceeding bearing limits, making it suitable for belt drives or lead-screw thrust collars. Continuous service is permitted from -20 °C to +40 °C, so it can operate in most factory environments without added climate control. The NEMA 34 frame size supports mounting compatibility with standard mechanical interfaces. A smooth shaft simplifies the fit of custom hubs, while the lead-wire exit leaves connector choice open for the surrounding machine design.
