H32NCHA-LNN-NS-00
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days
The H32NCHA-LNN-NS-00 control module features 32 channels, a 16-bit resolution, operates within a temperature range of -40°C to 85°C, and supports a voltage range of ±10V. Part of Kollmorgen's H Hybrid Motors series, it boasts RS-485 and Ethernet interfaces alongside a compact design measuring 150mm x 100mm x 30mm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

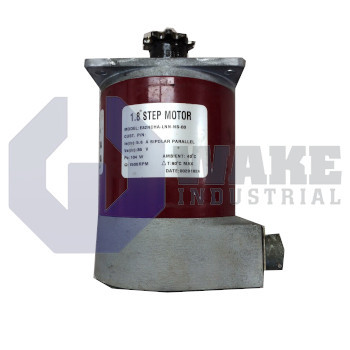

This model H32NCHA-LNN-NS-00 is a resourceful Stepper Motor designed by Kollmorgen for providing high torque with precise accuracy protocols. Kollmorgen implements advanced engineering combined with its focus on innovation to lead the industry for large industrial automation systems.
This H32NCHA-LNN-NS-00 stepper motor is a bipolar parallel motor designed for high-grade industrial applications. It requires a rated voltage of 65 V with a nominal current flow of 5.6 A per phase. This helps in ensuring vigorous torque generation and reliable motion control. With a power rating of 133 W, this motor delivers consistent output while maintaining efficiency across a variety of operational conditions. This comes within a NEMA 34 frame design this H Hybrid series stepper motor provides a torque of 3.14 Nm at holding conditions. The motor’s maximum speed of 1500 RPM ensures versatility across different motion control systems. The resistance of 0.39 ohms at phase allows for efficient current flow while the phase inductance of 4.1 mH contributes to controlled current rise times by reducing electrical noise and improving performance at high step rates. The rotor showcases a moment of inertia of 0.120 Kgm² × 10⁻³ which affects acceleration and deceleration rates.
The H32NCHA-LNN-NS-00 stepper motor’s detent torque of 0.3 Nm enhances positional stability when the motor is unpowered by preventing unintended movements. The total motor weight of 2.41 kg facilitates various systems without excessive structural load. The motor’s windings reach 130°C under rated current conditions and need thermal security with a maximum bearing temperature of 90°C in ambient air at 40°C without a heat sink. Its small signal inductance measured at 1 kHz and 1 amp using an impedance bridge further characterizes its dynamic response by contributing to smooth and precise step execution.
Frequently Asked Questions about H32NCHA-LNN-NS-00:
Q: What is the rated voltage and current of the H32NCHA-LNN-NS-00 stepper motor?
A: The motor operates at 65V with a rated phase current of 5.6A, ensuring powerful torque output and stable performance in industrial applications.
Q: How much holding torque does the H32NCHA-LNN-NS-00 motor provide?
A: This stepper motor delivers 3.14 Nm holding torque, making it suitable for high-precision applications requiring strong positional stability.
Q: What is the phase inductance of the H32NCHA-LNN-NS-00 stepper motor?
A: The phase inductance is 4.1 mH, which helps regulate the current rise time, reducing electrical noise and improving step precision.
Q: What is the maximum operating speed of the H32NCHA-LNN-NS-00 stepper motor?
A: This motor can achieve speeds up to 1500 RPM, making it ideal for applications requiring both high torque and rapid motion.
Q: What is the thermal rating of the H32NCHA-LNN-NS-00 stepper motor?
A: Under rated current conditions, the motor windings can reach 130°C, with a maximum bearing temperature of 90°C in 40°C ambient air.
