The Kollmorgen H2HNRHT-LNF-NS-00 is part of the H Hybrid Motors series and features a NEMA 23 frame size with a 2.25 inch diameter. It is a bipolar drive motor with a step angle of 1.8 degrees and offers 200 steps per revolution. The motor has a smooth shaft, operates with Class B insulation rated at 130°C, and supports a regular leadwire connection with 4 lead parallel wiring.
Internal Product Review
The H2HNRHT-LNF-NS-00 is a Kollmorgen H Hybrid Motor configured as a bipolar stepper with a NEMA 23 frame. A 1.8-degree step angle and ±1.5% step accuracy support smooth low-speed positioning, making this unit a strong choice for precise motion applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

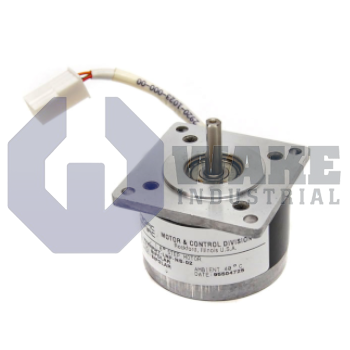

The H2HNRHT-LNF-NS-00 hybrid stepper motor is supplied by Kollmorgen within the H Hybrid Motors series. It uses standard construction and a laminated rotor to generate incremental motion for pick-and-place stations, small conveyors, and dosing pumps. Because the design provides no internal feedback, the axis operates in open-loop mode, moving a smooth shaft to defined positions strictly from commanded pulse trains. A NEMA mounting face allows the unit to bolt directly to gearboxes or linear actuators while keeping envelope dimensions compact for crowded control frames.
Mechanically, the unit follows the NEMA 23 outline and carries an external diameter of 2.25 in., making it interchangeable with many existing stepper mounts. Each electrical pulse advances the rotor by 1.8 degrees, so a full turn is divided into 200 steps for repeatable indexing. A half-stack stator, smooth shaft modification, and a winding optimized for maximum torque at low speed support high holding torque without increasing length. The insulation system is certified to Class B, 130°C and maintains 100 Megohms to ground, while reliable operation is specified from ‑20 °C to 40 °C. The absence of a shaft seal reduces friction and suits applications kept free of fluid splash.
Electrically, the motor is wound for Bipolar drive and leaves the housing through a Regular leadwire bundle. The conductors form a 4 lead parallel set colored Black, Orange, Red, and Yellow for quick field identification. Coils withstand up to 340 Vdc when tested to the insulation voltage rating, supporting connection to common stepper amplifiers. Under those conditions the positional error does not exceed +/- 1.5 %, eliminating the need for external feedback in many general-purpose axes. A NEMA mounting style completes the interface, and the lack of a shaft seal is acceptable where airborne contaminants are controlled by enclosure filtration.
